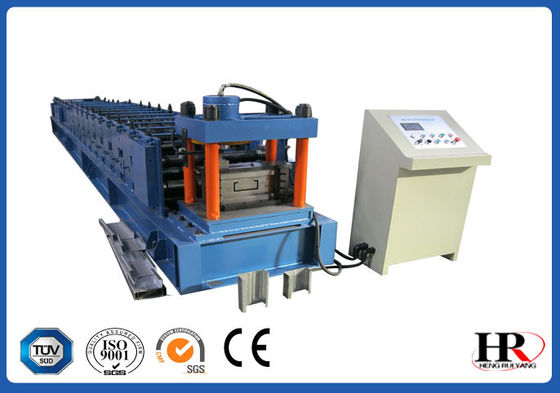

Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness

China Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness supplier
Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness supplier Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness supplier Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness supplier Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness supplier

Large Image :  Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness

Product Details:

Place of Origin: CHINA
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH17-11-24-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Forming Speed:: 12 -15 M/min Application: Metal Sheet Purlin
Main Power: 15 KW External Dimensions(L×W×H): Depends On Drawings

Colored C Z Purlin Roll Forming Machine 0.3-0.8mm thickness

Qucik Details



1. This series purlin machine has cold-forming technology, cold-punching technology and automatic control in the integration of many technologies of automated production equipment.



2. It consists of decoiler system, leveling system, punching system, cutting system, roll forming system, run out system, hydraulic system, controlling system etc.



3. It can continuous leveling, punching, forming the steel sheet according to customer’s requirement, automatically cut to length to make the suitable purlin.



4. This equipment has many advantages, just like high effiency, wide range of application, stable transmission, easy operation, high automation, lower labor intensity and so on. We can customize machine of different specifications according to your requirement.



Technical parameter

No Item Unit Parameter Remark
1 Suitable Material Type   Sheet ; Galvanized Sheet
Yield strength MPa ≤350
Material Thickness mm 1.5-3.0
Suitable material ID mm 500 - 600
Coil weight T 5
2 Purlin Specification mm 100-300
3 Forming Speed m/min 12-15
4 Roller Material   GCr15 or D2 quenching treatment According to customers’ requirement
5 Roller Driven Type   Chain Transmission
6 Operation   Touch Screen+Button
7 Total Power Kw About 21
8 Controller   Using PLC and Inverter Control System
9 External dimensions(L×W×H) m 30X2.5X1.7



Introduction

C or Z Shape Purline Forming Machine can produce many size of C & Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post-cutting equipment,, hydraulic station, and controlling system.



Suitable material for production

C & Z Purlin mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1.5~3.2mm. it is roll formed by C or Z shape roll forming machine



Product feature and usage

The products of C or Z shape purline forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.



Applicable Area

Door Frame, Rall, Angle, Pallet Rack, Pack Post, Swage Beam Panel,Glass Wool Panel, Hoist Rail, Hand Rail, Car Molding, C-channel,Fire Shatter, M-bar, U-channel



Workshop Pictures

Automatic Colored C Z Purlin Roll Forming Machine 0.3 - 0.8mm Thickness
