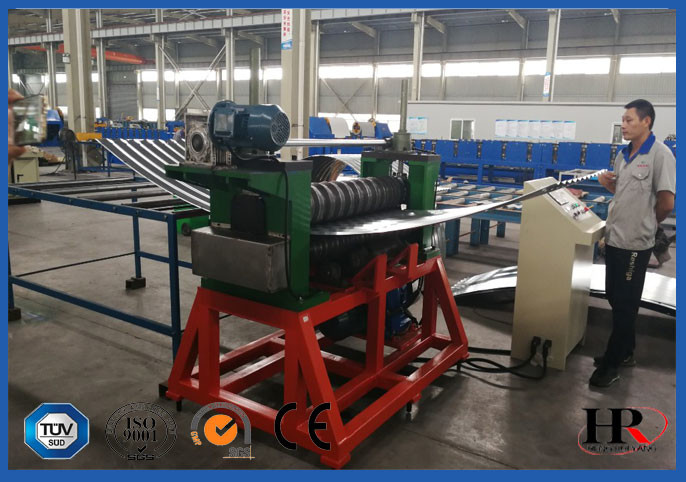

Plc System Steel Silo Corrugated Side Panel Roll Forming Machine 12-15m/min
Steel Silo Wall Sheet Corrugated Roll Forming Machine for Silo Side Panel
Place of Origin:
Technical parameter: 1) Main power:7.5.KW motor made in China 2) Roll stations: 18 stations 3) single row 1.0inch chain drive 4)Diameter of shaft:75mm 5) Cutting system: hydraulic stop-to-cut 6) cutting Length tolerance:3±1.5mm 7) Working speed:12-15m/min(not including the cutting time) 8) Thickness: 0.3mm--0.8mm,G350--550Mpa tensile galvanized or prepainted steel sheet. 9) Coil input width size:760mm.914mm.925mm 10) Material of roller:45# ,HRC45--52 11) Material of blade mould:Cr12, quenched 58-62 12) Size of machine: approx8.5m*1.4m*1.4m 13) Machine structure:wall structure (see the picture below) 15) Hydraulic power:5.5kw 16)Hydraulic pressure :12Mpa 17) The solenoids are from in Taiwan 18) the hydraulic pipes are from Chinese famous brand 18) way of control:PLC control,Siemens made in Germany 19)Yaskawa inverter made in Japan 20) All of the contactors are Schneider/Omron brand 21) All of the switches are Omron brand 22)Omron encoder measures the length 23)Electrical:380V,50Hz,3Ph 24)air plugs installed on the PLC cabinet
Decoiler---Guiding---Film covering--- Roll forming machine-- Pressing----Hydraulic cutting--- Output tables
All of our product designs are provided by our designers., the strength of silo,resistance coefficient of the typhoon and the bending resistance data are perfectly calculated by experts.
2.State of the art manufacturing technology
Every parts of the cement silo are manufactured by advanced cutting and drilling technology, they are implemented with unique surface cleaning procedure then painted with fine coating.
3.Short production period
Our cement silo is in modular production, every components are produced by stream-lined workshop, in this way, we can significantly reduce the production cycle, so as to ensure fast delivery.
4.Excellent sealing condition
Between every junctions, we insert special silicone rubber and compress them from 5mm into 1mm, the strong elasticity effect will automatically fill in every possible leaks, we also use glass cement to seal the surface of the junction, so as to re-ensure the sealing condition and prevent any infiltration of moisture.
5.Easy delivery and installation
Our silos are produced in parts, they can be easily packed into containers regardless of the size, since all the manufacturing process are finished in factory, all you need to do is to assemble the parts of silos after delivery, that will save you quite amount of time.
