Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai

China Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai supplier
Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai supplier Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai supplier Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai supplier Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai supplier Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai supplier Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai supplier

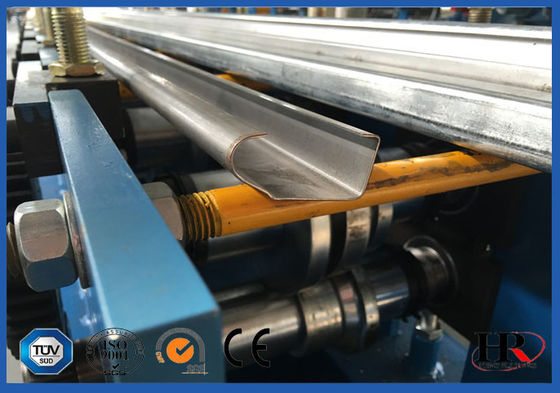

Large Image :  Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai

Product Details:

Place of Origin: China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SBO15004

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: container
Delivery Time: 45Days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Automatic Grade: Semi-Automatic Drive: Electric
Power Source: Hydraulic Pressure Material: 40Cr
Control System: PLC Control System HS Code: 8455212000

Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai

Product Details


Model NO.:SBO15004

Control System:PLC Control System
Export Markets:Global


Packing:Wooden Cases
Origin:Jaingsu China

HS Code:8455212000
Production Capacity:50 Set/Sets / Year

Product Description

Rittal System Electrical Cabinet Frame Roll Forming Machine

1 parts of equipment

The whole line includes  leveling,feeding/punching, forming ,cutting and so on

The whole line consists of de-coiler system, punching system, forming system,cutting system,electrical
control system ,etc


Additional Info.

Packing:Container Packing of The Line Sutiable for Oversea

Origin:Jiangsu

Production Capacity:10 Set/Sets / Month

Product Description

Forming craft
De-coiler----Leveler/feeder----Continuous punching---Roll forming(welding)---Cutting-to-length---Collection
Equipment structure
This production line consist of de-coiler,leveler/feeder,Continuous punching,Roll forming,Cutting-to-length,Collection and electric control system,etc.
1, Bottom Continuous punching
Punching type:Four-column punching device
Punching mould material:Cr12
1, Roll Forming Machine
Forming stations:26 stations
Wall-frame structure or gantry type
Max feeding width:220mm
Roller  axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Wall-frame structure or gantry type
Max feeding width:220mm
Roller  axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Fly-cutting device without bur


PRODUCT DESCRIPTION




No.


Name


unit


parameter


remark


1


Suitable raw materials


type




Mild steel, galvanized sheet




Plate strength

Map

≥350




Plate thickness

mm

1.2~2.5



2


specification

mm


See the picture



3


speed

m/min

6~8



4


Material of the roller




GCr15,Hardening treatment



5


drive type




Gear box



6


power

kw


About45



7


Electrical control system




PCL frequency control



8


Size(lengthX widthXheight)

m

35X4X3.9




Additional Info.

Packing:Container Packing of The Line Sutiable for Oversea

Origin:Jiangsu

Production Capacity:10 Set/Sets / Month

Product Description

Forming craft
De-coiler----Leveler/feeder----Continuous punching---Roll forming(welding)---Cutting-to-length---Collection
Equipment structure
This production line consist of de-coiler,leveler/feeder,Continuous punching,Roll forming,Cutting-to-length,Collection and electric control system,etc.
1, Bottom Continuous punching
Punching type:Four-column punching device
Punching mould material:Cr12
1, Roll Forming Machine
Forming stations:26 stations
Wall-frame structure or gantry type
Max feeding width:220mm
Roller  axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Wall-frame structure or gantry type
Max feeding width:220mm
Roller  axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Fly-cutting device without bur






Rittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in DubaiRittal System Electrical Cabinet Frame Making Machine Roll Forming Machine in Dubai



Modular and exible:
Bayed enclosure systems support exible, innite baying
High protection category and international approvals
UL-tested busbar systems
Optimum climate control even at high heat losses
Perfect integration into a standard container if required
