Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler

China Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier
Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler supplier

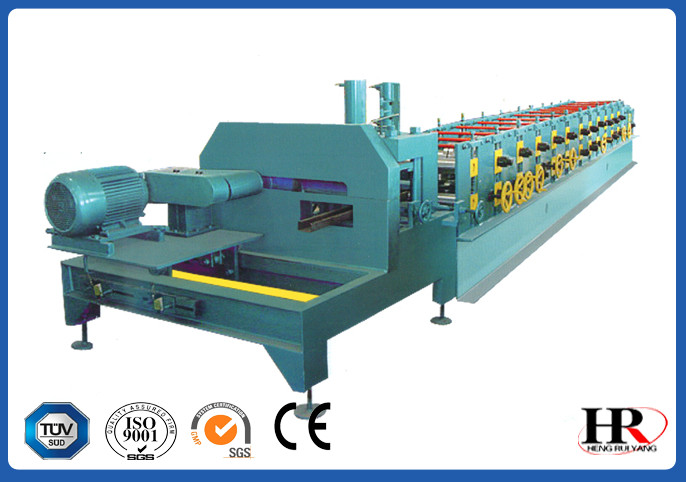

Large Image :  Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151209-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Detailed Product Description
Profile: 100-250mm Purlin: Steel Strip
Specification Type: Standard Configuration; Low Configuration; High Configuration Main Power: 15 KW
Controls: Mitsubishi Transducers, Schneider Electric, PLC Roller: Antirust Treatment
Hydraulic Systems: 10-12Mpa Yield Stress: 230-300; 300-350

Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler


1. Components of C Z Purlin Roll Forming Machine

The roll forming machine includes 4tons manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler

2. Technical Parameters


Material specification

galvalume, galvanized steel and carbon steel.

Thickness

1.0mm to 2.5mm.

Main motor power

15 kw.

Hydraulic station power

5.5 kw.

Feeding width

changeable.

Cover width

changeable.

Yield stress

235Mpa(33KSI) ~ 345Mpa (50KSI).

Roll forming Speed

12 m/minute.

Cutting Tolerance

+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler

Max. Capacity: 3000kgs.

Coil inner diameter

508mm.

Voltage

As per customer’s request.

Numbers of stands

17 stands/stations/pairs.

Type of cutting

Roll-formed and length-set profile cutting.


3. Material of Main Equipment


Roller Material

GCr15 bearing steel, with quenching treatment.

Active Shaft Material

High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.

Electric Elements

PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements are from famous suppliers of China.

Cutter blades

Cr12 mould steel with quenched treatment.


4. Process sketch

Uncoiling the sheet --- Infeed guiding --- Straightening --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).

5. Specification
Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler

6. Series Design of Product

Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler


Machinery Show
Adjustable CZ Roll Forming Machine With Manual Or Hydraulic Decoiler

 Photos right preserve.
