Style: Double Layer Cold Rolling Former Machine Production Capacity: 10 ~12m /minute
Passive Uncoiler: Max. Capacity: 5000kgs Type Of Cutting: Roll-formed And Length-set Cutting
Dimension(L*W*H): 9m*1.5m*1.5m Weight: 8-10 Tons

Double Layer Metal Cold Roll Forming Machine , Steel Roll forming Machine Design

Quick Details

  • Condition: New
  • Type: Tile Forming Machine
  • Tile Type: steel/ aluminium
  • Use: Roof
  • Production Capacity: 10 ~12m /minute
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Wuxi Shenghong Machinery
  • Power(W): 5.5KW
  • Voltage: as per custmer's request
  • Dimension(L*W*H): 9m*1.5m*1.5m
  • Weight: 8 ~10tons
  • Certification: CE, ISO9001:2008
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name 1: metal roll forming machine
  • Name 2: double layer metal roll forming machine
  • Name 3: roll forming machine metal

1. Components for the sheet profiling machine



The roll forming machine includes manual uncoiler unit, sheet guiding equipment, roll forming system,

cutting equipment, hydraulic station, electric controlling system and run out supporting table.

Double Layer Metal Cold Roll Forming Machine , Steel Roll forming Machine Design



2. Technical Parameters



Material Spec: Aluminum, aluzinc, galvanized and pre-painted galvanized steel sheet

Thickness: 0.3 mm to 0.7mm (perfect is 0.4mm-0.6mm)

Main motor power: 5.5 kw

Hydraulic station power: 5.5 kw

Feeding width: 1200mm

Cover width: 780mm

Coil stress: Q235 Mpa(33KSI); maximum stress yield is Q345Mpa (50KSI)

Producing Speed: 3~4 m/min. (including the speed of step pressing and cutting)

Cutting Tolerance: ≤±2.5mm ( length≤ 5000mm) ; ≤±3mm ( 5000mm < length ≤ 10000mm)

Manual Uncoiler: max. capacity: 5000kgs

Stands number: at least 13 stands (13 groups of rollers)

Type of cutting:  Roll-formed and length-set cutting



3. Material of Main Equipments



Roller Material: high grade No.45 forged steel, Coating with hard chrome.

Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.

Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

Other Elements: from famous suppliers in China.

Cutter Blade: Cr12 mould steel with quenched treatment.



4. Process sketch



Uncoiling the sheet --- Infeed guiding --- Roll forming --- Step pressing --- Measure length --- Cutting the panel ---

Panels to the supporter (option: automatic stacker).

Packaging & Delivery

Packaging Details: Cold roll forming lines:
1. rollers are put on anti-rust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well;
2. the oil hose and electric wires ae marked, and easy to be connected when used;
3. in container loading, sea-worthy, well fixed by wire rope, wooden block and nails.
Delivery Detail: about 60 days.



Machinery Shows

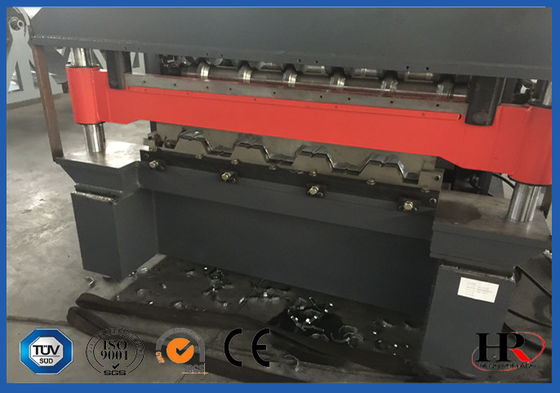

Double Layer Metal Cold Roll Forming Machine , Steel Roll forming Machine DesignDouble Layer Metal Cold Roll Forming Machine , Steel Roll forming Machine Design
