Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Shenghong |
Certification: | CE ISO |
Model Number: | Roof Tile SWL151218-62 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases. |
Delivery Time: | 40 days after payment |
Payment Terms: | T/T |
Supply Ability: | 25 SETS/ MONTH |
Series: | Trapezoid Sheet Metal Cold Roll Forming Machine | Roll Station: | 20 Stations |
---|---|---|---|
Forming Speed: | Approx. 12 - 15 M /min | Controls: | Panasonic Controls |
Material: | Galvanized Or Pre-painted Steel Sheet | Electric Elements: | PLC Control Panel, Transducer Imported From Mitsubishi Of Japan |
High Light: | sheet metal forming machine,sheet metal rolling machine |

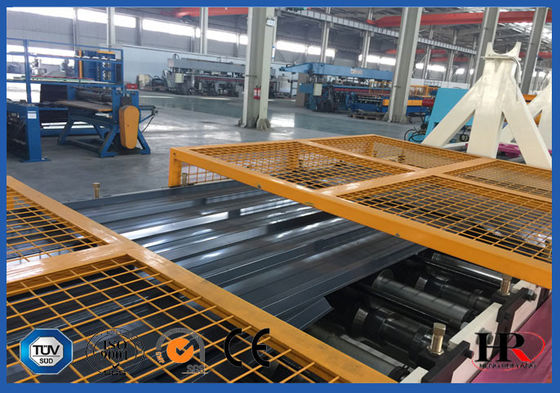

Trapezoid Sheet Metal Roll Forming Machines with Polished Rollers
Specifications
1 No-girder and columniation curve roll forming machines
2 roll forming machine for roof panels and walls
3 C and Z shaped purlin
Sheet Metal Cold Rolling Mills Introduction
1. Size of machine: 1200mm
2. Working speed:12m-15m/min (not include cutting)
3. roll station: 20 stations
4. material of roller: 45 forge steel, polished and coated with chrome
5. material of main shaft: 45 forge steel diameter roller 76mm
6. main power: 5.5Kw
7. Hydraulic station power: 4Kw
8. Hydraulic pressure: 12 Mpa
9. Control system: PLC, Panasonic
10. Size of machine : 9000×1600×1200mm
11. material of blade: Cr12Mov
12. thickness: 0.4-0.8mm
13. tolance: 3m+-1.5mm
14. way of drive: one inch chain
15. the norm thickness of design: 0.5mm power 380V 50HZ
Machine Composition
Hydraulic Cutting Device
PLC Control System
Machine Shows
Mannul Decoiler Show
