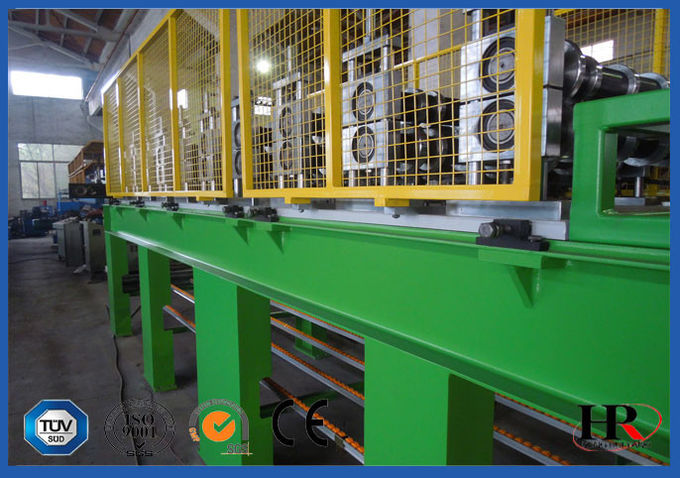

950 - 1000mm Width PU Sandwich Panel Production Line With 150 - 200 Bar Foaming Pressure
Model: Sandwich Panel Machine Series
Forging Forming Method:Cold Roll Forming
Power Source: Electric
Certification: ISO9001, CE
Warranty: 12 Months
Advantage: Easy to Maintenance
Total Power: About 100kw
Double Belt Conveyor: 23m
Control Model: Misubishi PLC
Working Speed: Max.8m/Min (Adjustable)
Stacking Height: 1000mm
Operation Language: English or as Per Client`S Required
Cutting Style: Automatic Hydraulic Cut to Length
Guarantee Time:First Year Free, Lifetime Services
Export Markets: Global
Packing: About 10*40ft Containers
Standard:CE SGS BV
PU Sandwich Panel Line
1. Manufacturing roll forming machine since 2003
2. With ISO,SGS,BV and CE certificate
3. 2 year quality warranty
4. Export to more than 20 countries
5. Technician can be sent to your factory to install the machine and train your workers
|Raw Material||Type||Color steel coil|
|Max. Width|| 1250|
|Sandwich Panel ||Panel width || 950-1000mm (according to profile requirement)|
|Mini thickness||40mm (corrugated sandwich panel)|
50mm (wall panel)
|Max. Thickness||150mm (corrugated sandwich panel)|
200mm (wall panel)
|Min. cutting length|| 3 m |
|Max. Stacking length||15m|
|Working height ||1150mm (height of panel coming out)|
|PU forming density|| ABOUT 40 kg/m3|
|Pressure for foaming ||150-200 bar|
|Effective length of double belt conveyor||23 m|
|Roller material||45# steel , coated with Chrome|
|Shaft for rollers ||Solid shaft with 72mm,processed with cylindrical grinder|
|Forming speed(m/min)||3-7m/min (adjustable)|
|Speed adjusting mode||Misubishi frequency transformer|
|Roller drive ||Decelerating motor + Chain drive|
|Cutting mode||Hydraulic cutting|
|Cutter material ||Cr12 mould steel|
|Length measurement||Nemicon Encoder|
|Control mode||Mitsubishi PLC|
|Operating mode||Button + Mitsubishi Touch screen|
|Total power(kw)||About 100KW|
|Hydraulic Uncoiller||2set |
|Platform for forming machine||1set |
|Roll Forming System||2set |
|Double Belt Laminator||1set|
|Cutting System||1set |
We care about quality
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.
Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
We care about user experience
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
We care about your concern
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "special"
Can not find the machine you need? Why not customize it!
We have: 10 years experience in making roll forming machine
10 years experience engineers
We are professional in making roll forming machines since 2010. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order of roll forming machine
3. Have our own tool center. 12 sets CNC machines.
4. Wuxi Shenghong is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
