Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome

China Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome supplier
Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome supplier Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome supplier Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome supplier Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome supplier Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome supplier Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome supplier

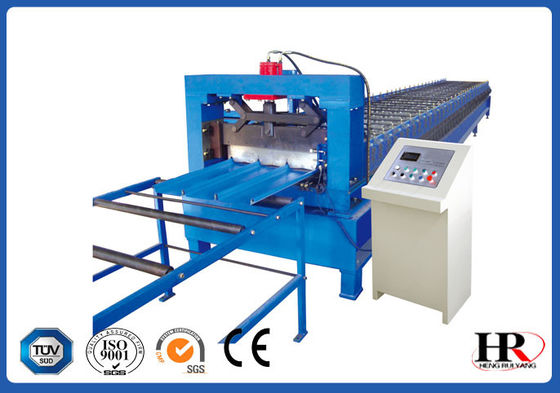

Large Image :  Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151222-104

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Material Type: Good Price, Fast Delivery, Roller Drive: Decelerating Motor + Chain Drive
Feature: Efficent, Whole Life Technical Support Service: " All-in-house Source' Factory
Type: Tile Cold Bender Machine / Tile Roll Channeling Machine After-sale Service: Lifetime Technical Support

Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome


Technical parameter



Item Specification

Raw Material
Type Pre-painted steel coil & galvanized coils
Thickness(mm) 0.3-0.7
Yield strength(mpa) 235-550
Roller material 45# steel , coated with Chrome
Shaft for rollers  Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min) About 20-25
Output speed(m/min) About 12 for 6m length sheet
Speed adjusting mode Mitsubishi frequency transformer
Roller drive                                                Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material  Cr12 mould steel
Length measurement Nemicon Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 7.5KW
Total power(kw) 9.9 KW



Components of machine



Decoiler (manual decoiler and hydraulic decoiler for option) 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table (auto. Stacker for option) 1set



Why choose this corrugate roll froming machine?


1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.



We customize your machines! To customize machine, we would love to know:


1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker

Have no idea about them?
We will be glad to recommend the lacal popular profile for you----Just let us know your country!



Process flow


Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table


Packing


1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 40-50 days after received advanced payment


Why us?


1.  Customize roll forming machines since 2010.
2.  Capacity: 25 sets / month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers



Machinery Photos



Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome



Workshop Show



Chain Drive Tile Cold Roof Sheet Making Machine Coated With Chrome


Provide profile drawing & design technical support FOR FREE!
