Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Shenghong |
Certification: | CE ISO |
Model Number: | SWL151223-113 |
Minimum Order Quantity: | 1 sets |
Price: | Negotiation |
Packaging Details: | 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases. |
Delivery Time: | 40 days after payment |
Payment Terms: | T/T |
Supply Ability: | 25 SETS/ MONTH |
Feature: | New-generational High Speed, Whole Life Technical Support | Service: | Customization Available |
---|---|---|---|
Thickness Of Raw Material: | 0.4-0.8 Or 0.8-1.2 Mm | Raw Material: | Depends On Profile |
Yield Strength: | ≤ 400 Mpa | Coil Weight: | 5 Or 8 T |
High Light: | roof sheet roll forming machine,metal roof roll forming machine |

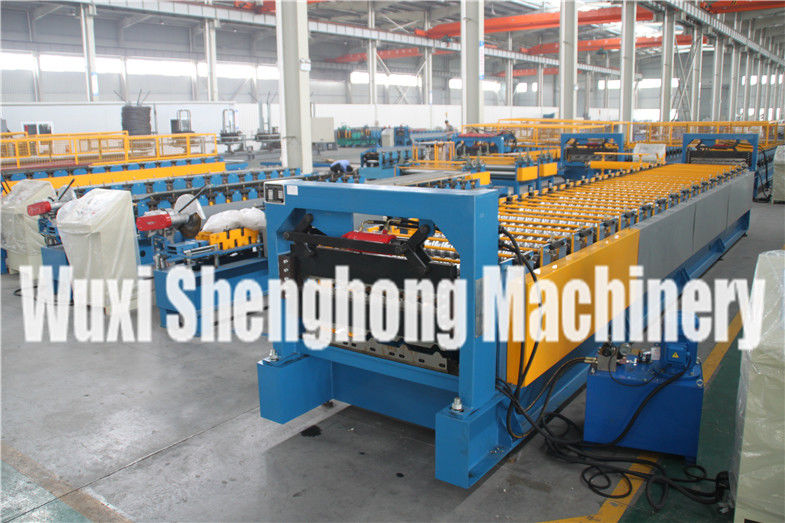

Professtional Tile Roll Forming Machine won Technology Progress Prize
1. Technical parameters
No. |
Item |
Unit |
Parameters |
Remark |
|
1 |
Suitable Material |
Type |
Color steel sheet, Galvanized steel sheet, Aluminium sheet |
According to customer’s requirement |
|
Thickness |
mm |
0.4-0.8 or 0.8-1.2 |
|||
Yield strength |
Mpa |
≤ 400 |
According to material characteristics |
||
Width |
mm |
≤1500 |
According to different profiles |
||
Coil weight |
T |
5 or 8 |
Optional |
||
2 |
Forming speed |
m/min |
≤ 15 |
||
3 |
Roller material |
45# steel with surface hard chromium plating |
|||
4 |
Driven type |
Outer chain transmission |
|||
5 |
Electrical system |
Adopt industrial computer PLC frequency control |
|||
6 |
Operate type |
Touch screen+Button |
|||
7 |
Total power |
kW |
6.2 |
According to the requirement of technical design(take HV-125 as example) |
2. Equipment overview
This series forming machine has many models for producing different, just like all kinds of roof panels, wall panels, inner liner panels and so on. The complete machine consists of decolier system, guiding system, roll forming system, cutting system, products supporter, hydraulic system and electrical control system.
The panels produced by this series equipment are widely used in steel structure building. We can design and manufacture machines for forming different profiles according to your (user’s) requirement.
This series of equipment has own 3 patents of utility model, included in the national key new product plan, and received the science and technology progress prize in Jiangsu Province.
3. Company Introduction
This series forming machine has many models for producing different, just like all kinds of roof panels, wall panels, inner liner panels and so on. The complete machine consists of decolier system, guiding system, roll forming system, cutting system, products supporter, hydraulic system and electrical control system. The panels produced by this series equipment are widely used in steel structure building. We can design and manufacture machines for forming different profiles according to your (user’s) requirement. This series of equipment has own 3 patents of utility model, included in the national key new product plan, and received the science and technology progress prize.
Machinery Photos
Workshop Show
