Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series

China Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series supplier
Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series supplier Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series supplier Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series supplier Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series supplier Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series supplier Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series supplier

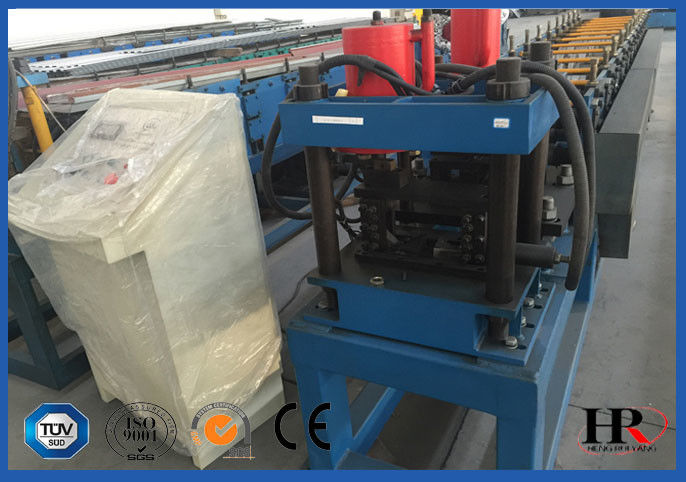

Large Image :  Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151223-116

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Controls System: PLC, Mitsubishi Transducers, Schneider Electric Roller Material: GCr15 Or D2 Quenching Treatment
External Dimensions(L×W×H): Depends On Drawings Thickness: 1.6 Mm- 3.2 Mm
Machine Type: C Z Purlin Machine Raw Material: Hot Roll Steel Strip Or Hot Dip Galvanized Steel Strip

Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series



Technical parameter



No

Item

Unit

Parameter

Remark

1

Suitable Material

Type



CR, HR Sheet; Galvanized Sheet



Yield strength

MPa

≤350



Material Thickness

mm

1.6-3.2



Suitable material ID

mm

500 - 600



Coil weight

T

5



2

Purlin Specification

mm

100-320



3

Forming Speed

m/min

25



4

Roller Material



D2 quenching treatment



5

Roller Driven Type



Outer-Chain Transmission



6

Operation



Windows 2000



7

Total Power

Kw

About 65



8

Controller



Using PLC and Inverter Control System



9

External dimensions(L×W×H)

m

30X2X1.7





Brief introduction



 1. This production line is the automatic production line for purlin, with functions of automatic replacement CZ purlin, automatic adjustment specification, automatic set length, punching, cutting etc.



2. It consists of decoiler system, leveling system, punching system, cutting system, roll forming system, run out system, hydraulic system, controlling system etc.



3. It is the high efficient equipment for making purlin of contemporary enterprises.



4. This equipment in production of purlin is widely used in the steel structure buildings.



5. It has obtained a number of utility model patents and high-tech products Science and Technology progress prize.



Suitable material for production


C & Z Purlin mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1.5~3.2mm. it is roll formed by C or Z shape roll forming machine



Introduction



C or Z Shape Purline Forming Machine can produce many size of C & Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post-cutting equipment,, hydraulic station, and controlling system.



Product feature and usage


The products of C or Z shape purline forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Applicable Area : Door Frame, Rall, Angle, Pallet Rack, Pack Post, Swage Beam Panel,Glass Wool Panel, Hoist Rail, Hand Rail, Car Molding, C-channel,Fire Shatter, M-bar, U-channel.



 Loading Show

Hot Dip Galvanized Steel​ Changeable Purlin Forming Machine C / Z Series
