Mineral Wool / PIR Sandwich Panel Production Line , Compound Plate Forming Machine

China Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine supplier
Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine supplier Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine supplier Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine supplier Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine supplier Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine supplier Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine supplier

Large Image :  Mineral Wool / PIR Sandwich Panel Production Line , Compound Plate Forming Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151223-117

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Machine Type: PU / Mineral Wool / PIR Sandwich Panel Production Line Suitable Material Of Out Layer: Colored Galvanized Steel Sheet
Suitable Core Material: Mineral Wool, PU, PIR

Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine



Technical parameter



No

Item

Unit

Parameter

Remark

1

Suitable material

type



prepainted coil; aluminum coil; soft paper

can be made to order

coil stress

MPa

≤350

coil thickness

mm

0.4-0.8



coil width

mm

≤1250(max.)

can be made to order

coil ID

mm

500, 600



coil weight

T

5 or 8 or 10

decided by user

2

suitable core material



mineral wool, PU, PIR

can be made to order

3

sandwich panel length

m

3-15



4

sandwich panel width

mm

≤1050

can be made to order

4

sandwich panel thickness

mm

≤200

can be made to order

5

production line speed

m/min

3-7(adjustable)

adjustable

6

foam pour work pressure

bar

150-200



7

double belt length

M

21

can be made to order

8

electric control



PLC adopt industrial computer PLC frequency control

9

motor total power

Kw

300

10

machine dimension

(lengthX widthX high)

m

depends on drawings



Machine introduction



 This production line integrates mechanics, chemistry, electric control and hydraulic and pneumatic temperature control etc. This line consists of decoiler, film covering, roll forming, preheating, foaming system, double belt system, cutting system,  cooling system, stacking system, conveying, packing system, electric control, hydraulic and pneumatic system etc. It’s featured by high automation, high efficiency and easy operation etc.  Its products is widely used in steel structural building, cold storage and mobile houses etc. Different specifications, model and composition of the production line can be specially designed for users.

 This production line win five patent, China Building material industry brand, Provincial technology development award.



Summary of Sandwich Panel Production Line

  • This pu sandwich panel production line is an automatic production line.​
  • In the PU sandwich panel producing procedure, the product line can continuously produce sandwich panel with PU as its core material. The liquid state raw materials are continuously injected into the middle of two formed panels and reacting, foaming, solidifying in the double-beltl machine, furthermore, the PU sandwich panel could be cut out automatically according to the required length for users.
  • The whole line is consisting of two decoilers, two film converers, cutting equipment, Two roll forming machines, one preheating, one PU foaming machine, one mobile injector, one double-belt laminator, one set of plastic blocks supporting corrugation skin, one hot-air circulator, one set of side chemical stopper, one automatic cutting machine, roller conveyor, steel platform, powered roller conveyor and auto control etc.
  • Speed of the production line: Max. 8.6m/min ( frequency conversion to adjust speed )
  • Total length of the production line: about 120 meters
  • Total power of the production line: about 350KW



Additional Information



Expandable Polystyrene Sandwich Panel Machine mainly consists of a roll forming machine and a sandwich panel laminating system. Through this line, corrugated sandwich panels can be produced directly, without the shortcoming that traditional corrugated sandwich panels have to be laminated manually after the forming of corrugated sheet. Moreover, both the roll forming machine and the laminating system can work independently. The roll forming machine of the line consists of feeding system, roll forming system and cutting system, while the lamin ating system is made up of such equipments as uncoiler, feeding, squeezing, gelatinizing, heating, laminating, edge rolling, edge turn-over, groove-making, edge pruning,
pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts, merging mechanical and electrical equipments into an organic whole. Annual production of this line (eight ours a day) is about 600,000 square meters.

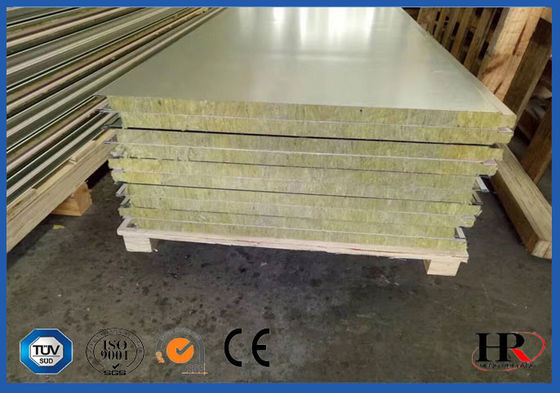

Machinery Photos



Mineral Wool / PIR Sandwich Panel Production Line ,  Compound Plate Forming Machine
