GI Steel Metal Deck Roll Forming Machine With Movable Control Box
Production Line Components
5T/ 8T/ 10T Decoiler
Auto Pre-cutting Device

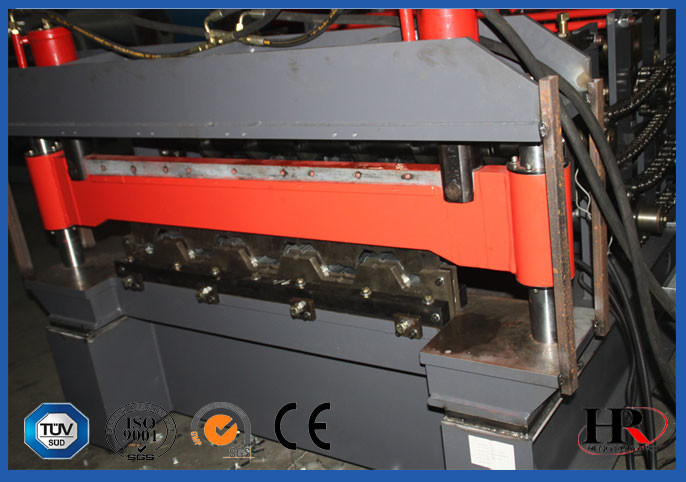

Hydraulic Cutting Device
Run Out Table / Auto Stacker
PLC Control Box
Movable Control Box
Safety Cover (option)
The floor deck panel is forming from GI steel to instead of traditional mould which is more strange, quick construction. It is widely using in many industries.
The floor deck forming line can forms continuously and quickly.
Material: Thickness: 0.7-1.2mm, width as design
Decoiler: 5T/8T/10T Decoiler
Forming Station: 15-50 stations up to the profile
Forming Speed: Max 25 m/min
Panel Run Out: Run Out Table/Auto Stacker
Total Power: About 30 KW up to final design
Total Installation Size: (25-60) X 4 m up to final design
0.8-1.2 / 1.0-1.5
According to customers requirement
According to customers requirement on the material properties
According to customers requirement on the different profile
5 or 8 or 10
No.45 Steel or 38CrMoAl
According to different requirements
Roller Driven Type
Using PLC and Inverter Control System
According to the final technical designing (HV-344, for example)
1. This Series Floor Deck Forming Machine is the automatic production line integration of mechanical, electricity, hydraulic. It consists of decoiler system, feeding and guiding system, lubrication system, roll forming system, cutting system, run out system, hydraulic system, controlling system etc.
2. This Series of equipment in the production of floor deck products are widely used in the high-rise steel structure building. It not only saves steel mold plate, but also reduces the weight of storey, so as to speed up the construction progress, improve the investment benefit.
3. We can provide different specifications, types and configurations of floor deck forming machine for the customers.
4. This series equipment is a national torch plan projects, included in the national key new products, has won four utility model patents, and won the China building materials machinery industry well-known brands, national key new product certificate, high-tech products in Jiangsu Province.
