High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line

China High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line supplier
High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line supplier High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line supplier High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line supplier High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line supplier High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line supplier High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line supplier

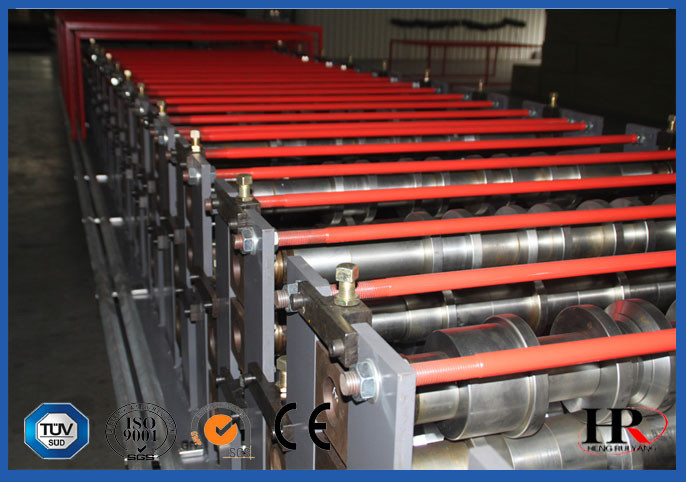

Large Image :  High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151223-123

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
After-sale Service: Lifetime Technical Support Operation Type: Touch Screen+ Button
Condition: New Dimension(L*W*H): 10m*1.8m*1.5m
Cutting Machine: Hydraulic Cutting Profile Drawing: According To You Require

High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line



Quick Details

  • Condition: New
  • Type: Tile Forming Machine
  • Tile Type: Steel
  • Use: Floor
  • Production Capacity: 8-14 m/min
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Shenghong
  • Power(W): about 22kw
  • Voltage: 380V
  • Dimension(L*W*H): 10m*1.8m*1.5m
  • Weight: 10 ton
  • Certification: CE & BV
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: blue, red, or as your require
  • Cutting machine: hydraulic cutting
  • Cutting power: 7.5 kw
  • Decoiler: manual, or hydraulic
  • Main power: 2 * 11 kw
  • Thickness: 0.8-1.2mm, or as you require
  • ODM: available
  • OEM: available
  • Profile drawing: according to you require
  • Produce: Decking Sheet Roll Forming Machine

Decking Floor Machine



Technical Parameters



Raw material

color steel or galvanized steel

Raw material thickness

0.8—1.2mm

Material width

1250mm

Speed

8—12m/min

Control

Siemens PLC computer control

Main

11 KW ,2 set

Hydraulic power

 7.5kw

Roller stand

26groups

Roller Material



45#forged steel, with surface polished and coated

with 0.05mm thickness hard chrome

Machine frame stand

welded structural steel

Thickness of frame stand

18mm

Shaft Material

high grade 45#steel, heated and quenched HRC 45-50

Material of blade

Cr12

Shaft diameter

90mm

Total weight

14T

Equipement dimension

16000mm*l500mm*1300mm

Finished sheet product as stipulation

GB/Tl2755—91

Voltage

 380V 3PH 50HZ ( or as your requirement)




Production Line Components

5T/ 8T/ 10T Decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Cutting Device, Run Out Table / Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover (option)




Refered Drawing



High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line



Features

The floor deck panel is forming from GI steel to instead of traditional mould which is more strange, quick construction. It is widely using in many industries.
The floor deck forming line can forms continuously and quickly.



Machinery Photos



High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line



Workshop Show



High Precision Metal Forming Machinery / Decking Floor Sheet Roll Forming Line
