1.25m Width Wall Panel Roll Forming Machine With Manual Shearing Device
1. 5 – 8 tons hydraulic decoiler: 1250 mm width; Ø 500 – 600 mm inner diameter; 2.0 kw
2. Manual shearing device before material feeding: PLC calculating and controlling, material saved, no wasted; roller cutter

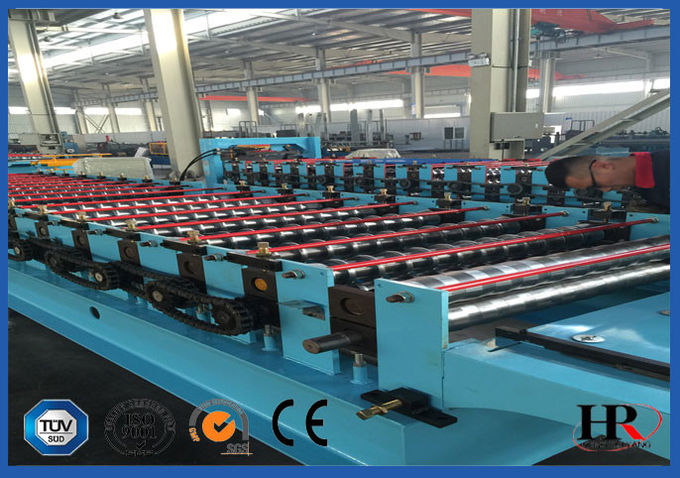

3. Roll forming machine: 14 – 20 Nos roller station; Ø 80 mm main shaft; 22 mm machine sidewall thickness; 0 – 20 meters / minute
4. Hydraulic cutting-off: Gr12 steel blade; 20 tons working table pressure; with fan-cooler; 4 kw
5. Simple run-out table: 4 pieces, in 8# channel steel
6. PLC controller: Mitsubishi PLC; 5.7" Mitsubishi touchable screen; Japanese frequency converter; Schneider electronic components
(1) Suitable Material: PPGI Coil
(2) Material Width: 1000 / 1250 mm
(3) Material Thickness: 0.40 -- 0.80 mm
decoiling – manual shearing – roll forming – cut-off after sizing – final wall panel
1. Manual Decoiler or Hydraulic Decoiler with Break is equipped optional for roll forming production.
2. Manual Roller Shearer before Roll Forming is the essential for roll forming production, and length control is set on touchable screen, so that material is calculated by PLC for each material thickness and color production.
3. Refine steel plates in 22 mm as Sidewall of machine is used.
4. 14 – 20 Nos of Rollers is used for roll forming, ensuring profile strength.
5. Mitsubishi (Japan) PLC and 5.7' Touchable Screen are used for for data processing and setting.
6. Roll forming speed is 0 – 20 meters / minute.
We care about your concern
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "special"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
15 years experience engineers
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
