High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board

China High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board supplier
High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board supplier High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board supplier High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board supplier High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board supplier High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board supplier High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board supplier

Large Image :  High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151223-135

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
After-sale Service: Lifetime Technical Support,ODM: Available OEM: Available Machine Type: Guide Column Or Wall Board Style
Condition: New Profile Drawing: According To You Require

High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board



Technical parameter specification



1. Processing Material:    colored steel plate, galvanized plate, or aluminum plate

2. Thickness of sheet :    Processing thickness of plate: 0.5--1.2mm

3. Equipment operation:   Automatically

4. Voltage :             according to customers request

5. Material width:         1000mm

6. Productivity:           5-10m/min

7. Material of Rollers:      Cr12

8. Material of shafts:       45# steel

9. Number of rollers:       30 rollers

10. Total Power :         5.5KW+4KW

11. Working accuracy:     10m±2mm

12. Roller fixer :         Guide column or Wall Board

13. Frame:              250H steel

14. Cutting System :      Flying saw or Hydraulic mold Cutting

15. Operating language:    Chinese, English, Russian

16. PLC Brand:           Delta, Mitsubishi,Siemens,Panasonic

17. Packing :           in nude, with waterproof cloth and stow-wood .The computer controlled cabinet is    packed with waterproof cloth and box.

18. Payment :           you should pay 30% of the total payment on the day when we sign

 the order contract, after signing <manufactured products purchase contract>, you send

persons to inspect goods, then payoff the whole payment before shipping out the goods.

19. delivery time:        50 Working Days



Features



The floor deck panel is forming from GI steel to instead of traditional mould which is more strange, quick construction. It is widely using in many industries.
The floor deck forming line can forms continuously and quickly.

ODM: available

OEM: available

Profile drawing: according to you require

Produce: Decking Sheet Roll Forming Machine



Production Line Components


5T/ 8T/ 10T Decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Cutting Device, Run Out Table / Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover (option)


Quick Details

  • Condition: New
  • Type: floor deck roll Forming Machine
  • Tile Type: galvanized aluminum
  • Use: Roof ,  floor deck
  • Production Capacity: 25m/MIN
  • Place of Origin: Jiangsu, China (Mainland)
  • Power(W): 7.5kw
  • Voltage: 380V
  • Dimension(L*W*H): L*W*H
  • Weight: 5 Ton
  • Certification: CE, BV
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: floor deck roll forming machine
  • Thickness: 0.7-1.2mm
  • Diameter Of Shaft: 90mm
  • main power: 15kw x 2
  • hydraulic power: 7.5kw
  • feeding width: ctstomized
  • Color: Client's Request
  • Installed Capacity: 30KW
  • Production Thickness Tolerance: ±0.2mm
  • OEM: welcome

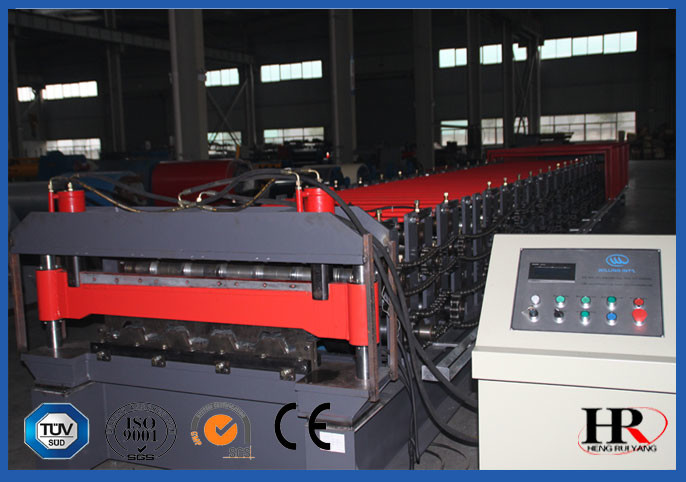

Machinery Photos



High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board



Workshop Show

High Speed Metal Deck Roll Forming Machine For Guide Column or Wall Board
