Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Shenghong |
Certification: | CE ISO |
Model Number: | SWL151223-140 |
Minimum Order Quantity: | 1 sets |
Price: | Negotiation |
Packaging Details: | 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases. |
Delivery Time: | 40 days after payment |
Payment Terms: | T/T |
Supply Ability: | 25 SETS/ MONTH |
Suitable Material: | 1.6-3.2mm, Q195~235 Cold Rolled Steel, Hot-zinc Coil | For C Purlin: | 100-350mm |
---|---|---|---|
For Z Purlin: | 100-350mm | Supply Type: | All-in-house Source |
Total Power: | About 30 KW Up To Final Design | Thickness: | 1.5-3.0mm |
High Light: | z purlin machine,z purlin roll forming machine |
Easy Control C Z Purlin Roll Forming Machine 3 Minutes Change Speed
Specifications
1. C&Z shaped purlin
Technican Parameter
1.1 Main dimension: 11400 x 1600 x 1800mm
1.2 Total weight: 14000kg
1.3 Main motor: 18.5kW
1.4 Hydraulic motor: 5.5kW
1.5 Hydraulic pressure: 15-20MPa
1.6 Steps of rollers:
Feeding & guiding: two sets
Lveling: one set, seven rollers
Main forming: 17 steps
Rib making: one step
Rectifying: one step
1.7 Forming speed: 15 m/min maximum
1.8 Changing speed from one profile to another or from one size to another size: 3 minutes.
1.9 Purlin specifications:
For C purlin: 100-350mm
For Z purlin: 100-350mm
1.10 Suitable material: 1.6-3.2mm, Q195~235 cold rolled steel, hot-zinc coil
1.11 Material of rollers: GCr15, 9CrSi, quenched
1.12 Material of rib roller: GCr15, 40Cr, quenched
1.13 Shape of rib: slash rib
1.14Dimension of punch adjustable:45-500mm
Features

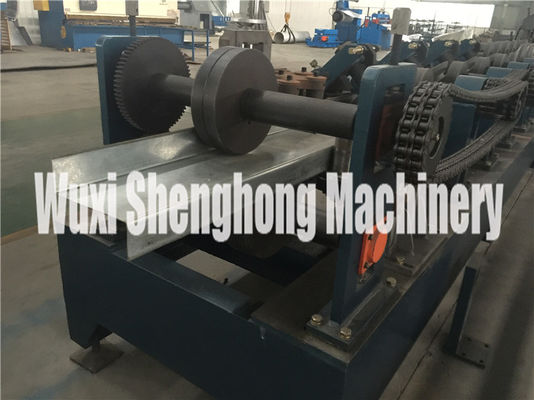

Machinery Photos
Workshop Show
