114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel

China 114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel supplier
114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel supplier 114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel supplier 114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel supplier

Large Image :  114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151224-143

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Material Type: Large Span Roofing Sheet Roll Forming Machine Type: Auto Working Mode
After-sale Service: Lifetime Technical Support Power Source: Electric
Thickness: 0.8-1.5mm Proper Span: ≤18m

114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel



Basic parameters of this large span roofing sheet roll forming machine



Main Technical Specification:
Size: 11650mm × 2230mm × 2300mm Total Weight: about 15000KG
Feeding Width: 1000mm Effective Width: 800mm
Proper span: ≤18m Sheet operating factor: 80%



Total MotorPower:18.9KW
Bending power: 3.0kw+1.1kwx2;                         Sewing power: 2.2kw Cutting power: 4.0kw; Forming power: 7.5kw
Controlling system: PLC & Manual Cutting: Mechanical cutting
The depth of the groove:114mm Equipped with generator
Material of roller shaft: 45# steel, galvanized Material of rollers: 45# steel, quenched with hard chrome



Features of Large span roofing sheet roll forming machine:

  1. Support many kinds of material like galvanized steel, colored steel, etc. And the material thickness from 0.8-1.5mm could be done.
  2. Support to make various colors, shapes design large span roofing sheets in high speed.
  3. Save energy and workforce, as nearly all the work could be done by machine automatically.
  4. We use brake system on decoiler for in case of stopping suddenly, de-coiler can be stopped easily.
  5. We take big diameter rollers, which can make the appearance of finished arch more beautiful.
  6. The rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.
  7. Roof curving crimping machine Steel Crimping Machine Curved Roofing Sheet Machine hydraulic curving machine roof curving machine is also the nickname of the following name.
  8. This type roofing sheet crimping machine has two types: one is for motor type and the other is hydraulic type.
  9. The following type I will show you the hydraulic roofing sheet crimping machine.

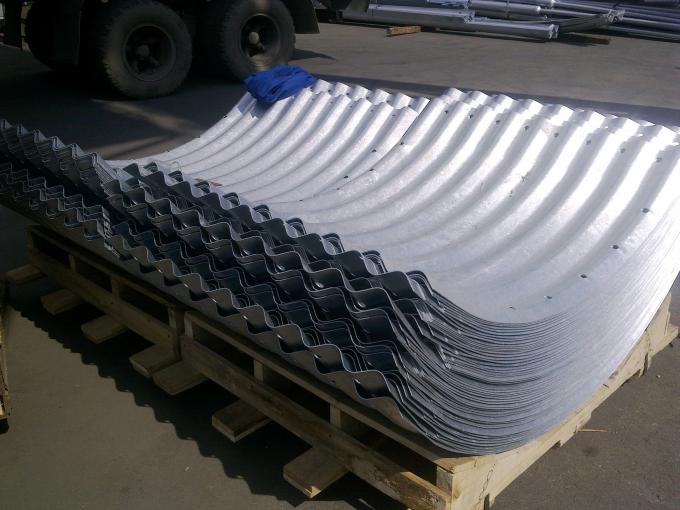

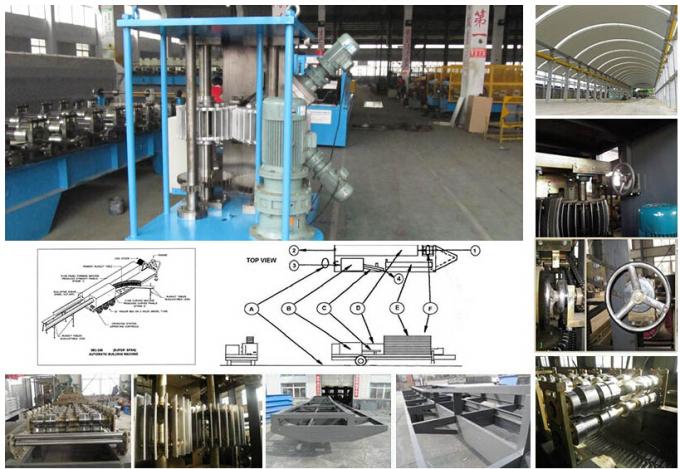

Machinery Photos

114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel



114mm Depth Groove Span Cold Roll Forming Equipment Colored Steel
