Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine

China Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine supplier
Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine supplier Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine supplier Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine supplier Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine supplier Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine supplier Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine supplier

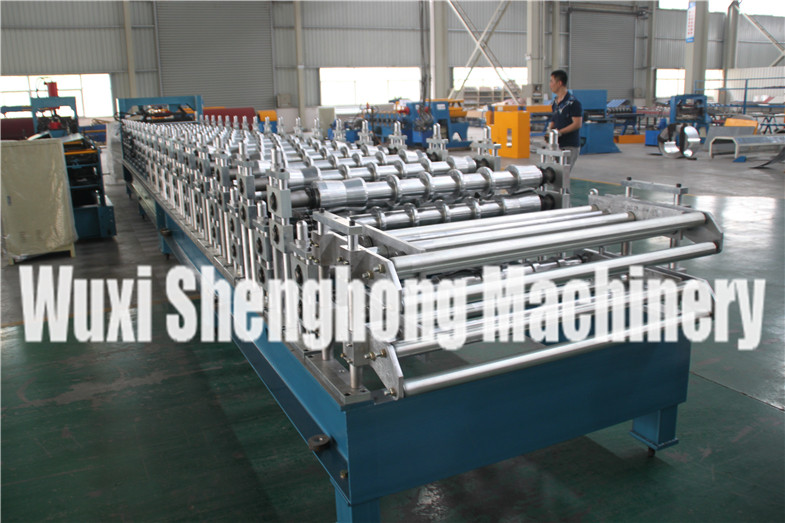

Large Image :  Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151224-157

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Condition: New Profile Drawing: According To You Require
Machine: Steel Deck Making Machine Thickness Of Raw Material:: 0.8-1.6mm
Main Motor Power: 18.5kW Hydraulic Motor Power:: 4kW

Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine



Roll Forming Machines for the manufacture of Floor Decking

  • Our roll forming machine can manufacture roll forming metal floor decking panel profile.
  • After roll formed by this roll forming machine, the Floor Decking Steel Sheet, Metal deck sheet surface will be very smooth and beautiful without any scratch on surface.
  • The designing of Steel Deck roll forming machine is aided and optimized by computer.
  • The metal deck produced by this machine has high strength with big wavelength.
  • It adheres well to concrete. Used on high buildings, it not only saves steel mold plate, but also reduced the weight of storey.
  • With the same bearing capacity, it economizes steel and cuts down investment accordingly.

Machine Technology Specification

  1. The metal deck formed by this machine has strong strength with high pitches.
  2. Construction profiles, Building profiles can be be used as the floor of high buildings, Building Construction, and the cost of such floor is low.
  3. The Steel Floor decking roll forming machine consists of un-coiler, feeding section, roll forming machine with protect guard, Hydraulic pressing and post-cut device, PLC control system, etc.

Roll Forming Machine Main Parameters



Material:

Galvanized steel sheet

Thickness of raw material:

0.8-1.6mm

Nodal distance:

adjustable according to requirement (>=250mm)

Main motor power:

18.5kW

Hydraulic motor power:

4kW

Working speed:

10-12m/min

Capacity Length:

up to 9999 mm (optional)

Control system:

PLC control, The designing of metal deck forming machine is aided and

optimized by computer.

Material of cutter:

Cr12MOv

Voltage:

380V 3 phase 50Hz or as per the customers' requirements

Total weight:

about 15MT

Line size (Lx w x h)

21000 mm×1500 mm×1100 mm



Steel Floor decking Roll forming profiles


Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine

Structural steel decking saves time in forming up and propping suspended concrete slabs.


Floor Decking Steel Sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness 0.8 - 1.2mm. With its high rib and high strength, used as the floor of high buildings, it can save steel mound and can also save the weight, in the same loading capacity, use this panel, and save the steel quantity, and thus save cost.We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. The following are some floor decking panel profiles as reference.



Profile drawings

 Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine

Structural Metal Deck Roll Forming Machine / Roof Sheet Making Machine


Further details about our roll forming machines or steel floor decking profile, PLS feel free to contact with us!
