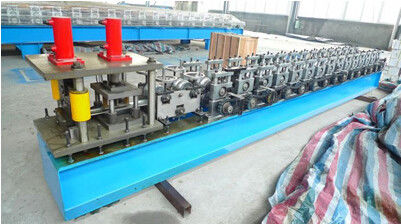

Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine

China Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine supplier
Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine supplier Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine supplier Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine supplier

Large Image :  Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151224-159

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Total Weight: Depend On Profile Material Of Shafts: 40 Cr
PLC Brand: Delta, Mitsubishi,Siemens,Panasonic Operating Language: Chinese, English, Russian

Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine



Advantages of Insulated rolling shutter door and window covering slats


Insulated rolling shutter door and window covering that have been widely used in Europe for over 100 years.

They offer energy savings, privacy and security, while enhancing the value and beauty of the home. Although insulated rolling shutters are associated with security and sun control.

they can also decrease dust, noise and sun damage to furniture, draperies and carpets.


Rolling Shutter Slat Roll Forming Machine (Polyurethane Filled) components


Our rolling shutters are custom built for each application with many options for your exact needs.
Rolling Shutter Slats Roll Forming Machine for producing single layer products is consisted of de-coiler, main roll-forming machine, straightening part, PU foam-filled device, cut-to-length tracing cutter, run-out table, etc.


Polyurethane Rolling Shutter Slats Roll Forming machine main parameters



Line structure

Portal-type frame style,  45# steel

Forming Roller Stations:

35 Stations

Forming Roller shaft:

Φ38mm

Forming rollers

GCr15, Quenching, hardness HRC56-62º

Forming Speed:

0-7m/min

Main motor:

7.5kw

Material of Sheet:

σs≤260Mpa

Feeding material thickness:

0.3 to 0.5 mm;

Cutting mode:

Automatic cut-to-length control



Insulated Roller shutter production with foam-filled slats


This roll forming machine is for producing aluminum shutter door & window slat with foam-filled, Our Roll-forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes,. inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles.



 Workshop Show

Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
