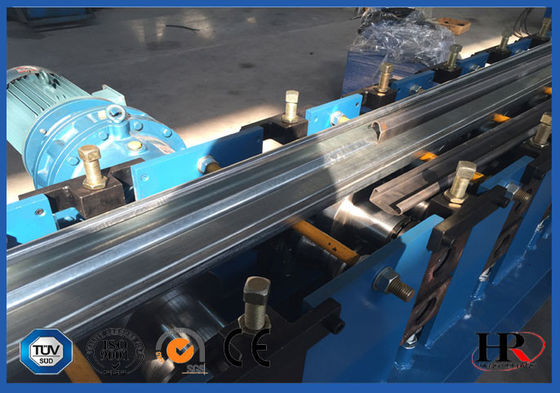

VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery

China VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery supplier
VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery supplier VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery supplier VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery supplier

Large Image :  VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery

Product Details:

Place of Origin: China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SWL151224-175

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: container
Delivery Time: 45Days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Machine: Damper Frame Roll Forming Machine Application: VCD Damper Frame Profile
Line Speed: Adjusted By Frequency Inverter Sheet Thickness:: 1.5mm
Driven: Gears And Chain Raw Material: GI Cold Steel

VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery


Brief introduction


1. The VCD damper frame is the main part of the HVAC air flow control valve.

2. The valve is an industrial plant civil construction of ventilation, air conditioning and air purification project indispensable central air conditioning end parts, generally used in air conditioning, ventilation system ducts, used to adjust the air flow manifold can also be used for new wind and back mix adjustment of the wind.
3. With the advantage of our full experience in this roll forming industry, we develop the roll forming line for production this VCD damper frame online, the whole process can be completed at one time.


Technology specification


1. VCD frame profiles Line is designed according to 1.5mm thickness material.

2. The VCD damper frame profile production line is consisted of de-coiler (manual), leveler, hoop, hydraulic press (with 3 sets punching moulds and servo motor control feeder), roll form machine, hydraulic cutter, run-out table, hydraulic system, electrical control system, etc.
3. The line is driven by gears and chain. The whole line is controlled by PLC, cut to length automatically.
VCD Damper / Door Frame Roll Forming Machine , Rollforming Machinery


Main parameters of damper frame roll forming machine



Line structure

Portal-type frame style,  45# steel

Forming Roller Stations:

16 Stations

Forming Roller shaft:

Φ47mm

Forming rollers

Cr12MoV, Quenching, hardness HRC56-58º

Forming Speed:

12 meters / min

Main motor:

2+3.7kw

Material of Sheet:

Soft Quality (Annealed) Galvanized or colored Sheets

Raw material

GI cold steel

Sheet Thickness:

1.5mm

Line speed

0-8m/min

Control mode

3xAC380V. 50HZ. (Other system is optional)



VCD damper frame profile


TAG: VCD frame, roll forming machine, Damper frame, VCD Damper frame roll forming machine
The following profile drawing is for type VCD damper frame. Custom style decorative sheet profiles are welcome!
