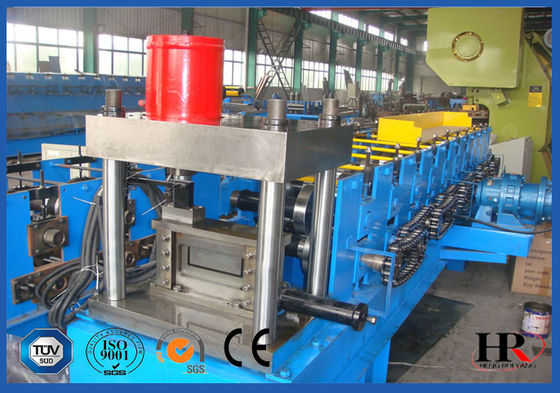

Low Cost U Shape Channel Roll Forming Machine With Stable Cutting

China Low Cost U Shape Channel Roll Forming Machine With Stable Cutting supplier
Low Cost U Shape Channel Roll Forming Machine With Stable Cutting supplier Low Cost U Shape Channel Roll Forming Machine With Stable Cutting supplier Low Cost U Shape Channel Roll Forming Machine With Stable Cutting supplier Low Cost U Shape Channel Roll Forming Machine With Stable Cutting supplier Low Cost U Shape Channel Roll Forming Machine With Stable Cutting supplier Low Cost U Shape Channel Roll Forming Machine With Stable Cutting supplier

Large Image :  Low Cost U Shape Channel Roll Forming Machine With Stable Cutting

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151223-140

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Supply Type: All-in-house Source Thickness: 1.5-3.0mm
Transmission: Gear / Sprocket Driving Process: 15-step To Form

Low Cost U Shape Channel Roll Forming Machine With Stable Cutting


Main Components


1. Manual Decoiler: one set
Un-powered,Manually control steel coil inner bore shrinkage and stop,
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton


2. Cold Rolling Mill:
With feeding material guide, body frame made from H type steel by welding;
Wall board thickness: 18mm
Rollers manufactured from Gcr15 steel, precision machined, hard Chrome Coated;
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 15-step to form
Main Motor=11KW , Frequency speed control
Forming speed approx.12-15m/min


3. Penumatic Cutting device:
with oil cylender to make stable cutting


4. PLC Control System
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V


5. Exit Rack Un-powered, two units


6. User's manual in English



Features of U Shape Roll Forming Machine

  1. The complete U shape rolling from machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system.
  2. We simply program the pieces and length we need in the computer and the shutter machine produces it automatically.
  3. The machines are easy to operate and running stable.



After-sale Service



  • The warranty of the machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
  • We offer technical support for the entire life of our machines.
  • We can send our technicians to install and train the workers in the clients' factories.



Machinery Photos



Low Cost U Shape Channel Roll Forming Machine With Stable Cutting



Workshop Show



Low Cost U Shape Channel Roll Forming Machine With Stable Cutting
