Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness

China Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness supplier
Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness supplier Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness supplier Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness supplier Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness supplier Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness supplier Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness supplier

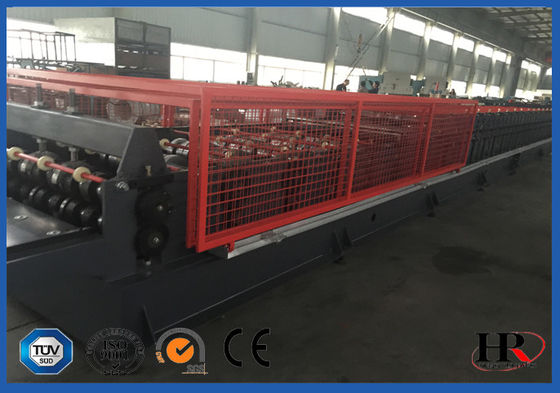

Large Image :  Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151226-210

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Cutter Frame: High Quality 20mm Steel Plate Steel Thickness: 0.4-0.8mm
Forming Speed: 8-18m/min Roller Stands: 18 Stands Bottom Layer, 16 Stands Top Layer
Machine Net Weight: 12 T Power Supply: 380V 50HZ 3 Phase

Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness


Description of 2 Layer roll forming machine


The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall & roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type. This line consists of uncoiler, cut-off unit, roll forming machine, products stacker and PLC automatic control cabinet.

1.Variable frequency speed control
2.Multi-purpose for overlap connection
3.Auto power off


Layout of double-layer roll forming mill


Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness


Technical parameters of 2Layer roll forming machine


Steel thickness: 0.4-0.8mm
Forming speed: 8-18m/min
Roller stands: 18 stands bottom layer, 16 stands top layer
Roller material: 45# steel, coated with chrome
Main motor power: 5.5kw
Hydraulic cutting power: 3kw
Hydraulic pressure: 12Mpa
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Control system: PLC with touch screen
Machine net weight: 12T


Typical double layer


Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness
Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness
Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness



Machinery Photos

Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness





Workshop Show



Corrugated Steel Sheet Double Layer Roll Forming Machine 0.4 - 0.8mm Thickness
