Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control

China Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control supplier
Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control supplier Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control supplier Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control supplier Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control supplier Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control supplier Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control supplier

Large Image :  Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151227-213

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Thickness Of Steel Coil: 0.7-1.25mm Guide Feed Way: Side Sliding Type
Structure: Floor Deck, Wall Panel, Thickness 14mm Dimension (L*W*H): 6.7×1.7×1.3m

Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control


Main technical parameters:

1 General information

1). Thickness of steel coil: 0.7-1.25mm
2). Material: PPGI, GI
3). Input width: 1220mm
4). Output width: 810mm
5). Total length (from de-coiler to output table): about 18M
6). Tolerance of length: 10±2mm
7). Transporting: 1×40ft Container

2 Main roll forming machine

1). Machine stand: 350H steel welding structure
2). Guide feed way: side sliding type
3). Structure: wall panel, floor deck
4). Number of stations: 24 stations
5). Main shaft material: 45# steel, O.D.: 90mm, quenching and tempering treatment
6). Roller material: high grade 45# steel, quenching 58-62℃
7). Way of drive: by chain
8). Forming speed: 8m/min
9). Main motor power: 18.5kw
10). Power supply: 380V, 50HZ or at buyer’s requirement, 3-Phase
11). Motor is under the mould, which can save space
12). Dimension (L*W*H): 6.7×1.7×1.3m

3 Hydraulic cutter

1). Material of blade and mould: Cr12MoV steel with quenched treatment 60-62℃.
2). Cutting system: adopt advanced hydraulic cutting system, automatic cut after forming no distortion, waste, high safe factor(main motor stops and then cuts).
3). Cutting type: stop machine cutting.

4 Electrical system

1). Screen display: Mitsubishi or Siemens touch screen;
2). PLC: Mitsubishi or Siemens;
3). Measure the length automatically;
4). Count the quantity automatically;
5). Length and quantity is controlled by computer, the machine will cut automatically as reaching the set length, the machine can automatic stop;
6). It is easy to adjust the error of length;
7). Meter count way: rotary encoder;

5 Hydraulic system

1). made in China;
2). Power: 5.5KW;
3). Oil pump of hydraulic station: gear pump;
4). Hydraulic cylinder: 100mm;
5). Structure of cutting: size of hydraulic station 55×65×90mm;
6). 1 set of electro valve;
7). The oil pipe can not be welded type (protective of oil leak), treatment of welding spot of total machine.

Description of floor deck roll forming machine:

Steel structural floor panel is the type of steel construction material with character of low light, hard, easy to install, which extensively apply in constructing skyscraper, residential building and bridge. Our World Technology Machinery steel structural floor panel with the feature of reliable, convenient operation, automatic can be used in various steel structural floor panels forming.

Profile drawing:

Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control


Production Line composition

De-coiler; Roll Forming Machine Unit; Hydraulic Automatic Cutting Unit; Run Out Table; PLC Control Cabinet; Electrical system; Hydraulic system.

Technical process

De-coiler→ Feed with guide→ Roll forming→ Hydraulic cutting unit→ Run-out table→ PLC control system


Forming part of floor decking roll forming mill

Typical floor decking:
Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control
Floor deck Floor decking Metal floor deck Steel floor decking

Application of steel floor deck:

Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control


Machinery Photos


Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control

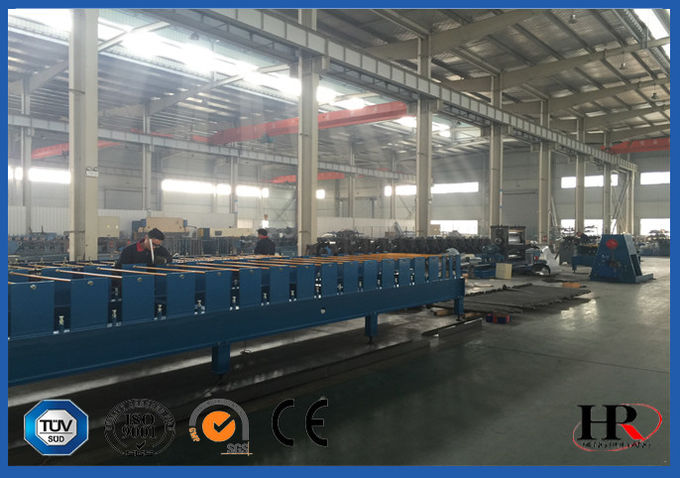

Workshop Show


Steel Structural Floor Panel Cold Roll Forming Machinery Easy Control

Contact Details
Wuxi Hengruiyang Technology Co.,Ltd

Contact Person: Mr.wang

Send your inquiry directly to us (0 / 3000)
