PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler

China PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler supplier
PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler supplier PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler supplier PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler supplier

Large Image :  PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: sandwich panel

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Appication: Insulated Rolling Shutter Door Slats Work Speed: 6—8m /min
The Dimension Of The Line: 28m X 1.5m X 1.4m The Total Weight Of The Line: 7 Tons
Type: Pu Rolling Shutter Door Making Machine

PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler





General Information of PU Rolling Shutter Slat Production Line



  • Rolling Shutter Door Profiles
  • Top layer and Bottom layer are galvanized steel, and in the middle is the PU Board
  • The Width of the Products: 55/77mm(Only one profile in one line)
  • The speed of the line: 6—8m/min.
  • The dimension of the line: 28mx1.5mx1.4m
  • The total Weight of the Line: 7 Tons
  • Components of the PU Rolling Shutter Door Production Line
  • 3T Manual Uncoiler
  • Feeding Guide
  • Transmission parts
  • Roll Forming Machine
  • Heating Device
  • Foaming Machine
  • Hydraulic Punching system
  • Pneumatic Fly-saw Cutting
  • Control Parts
  • Runout Table


Technical Parameters for PU Rolling Shutter Slat Production Line



  • Thickness of Sheets: 0.4mm—0.6mm(Galvanized Steel/Aluminum Coils)Production Speed: 8—10m/min.
  • Roller Stations: 38 stations.
  • Main Power: 7.5KW.
  • Diameter of Shafts: 55mm.
  • Transmission: gear-box or chain-brocket.
  • Motor Power for cutting: 3KW.
  • Electrical Control: PLC Control with frequency converter
  • Cutting Length Tolerance: 2mm

Product Description

  1. Our 37/42/55 profile pu rolling shutter slat production line is a little bit from 77&91 profile pu rolling shutter door making machine, because 37/42/55 pu rolling shutter slat production line produces pu insulated rolling shutter slats with punched holes;
  2. There are no holes required for 77&91 insulated rolling shutter door slats.
  3. Equipped with the pu rolling shutter door making machine is the PU Foaming machine and pneumatic stacking machine.

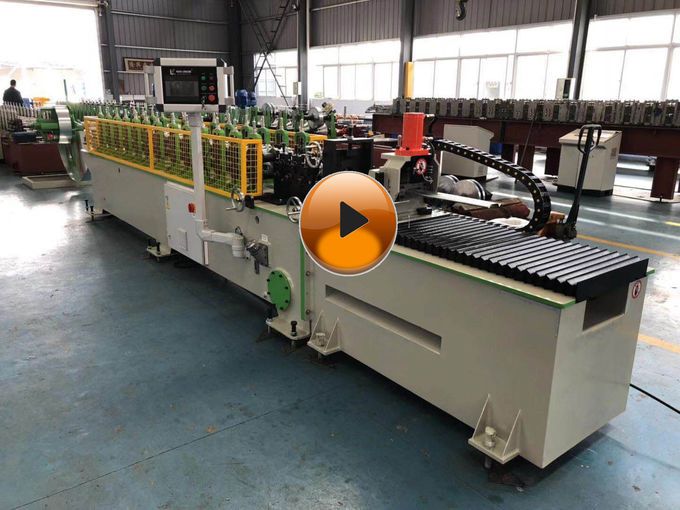

Click on the below picture to see the video:

PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler

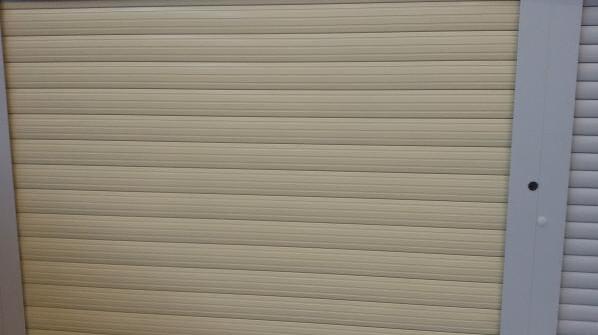

Pu foamed rolling shutter door Photos


 PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler

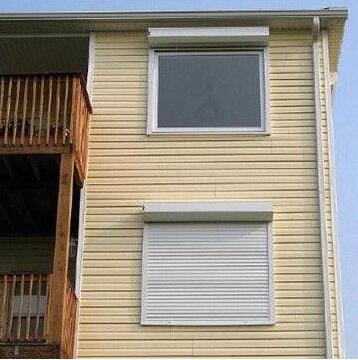

Application example



PU Foamed Insulated Rolling Shutter Door Making Machine 3T Manual Uncoiler
