Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed

China Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier
Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed supplier

Large Image :  Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SH16-314-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Type: Arc Corrugated Roof Roll Forming Machine Material Of Sheet:: Colored Steel
Forming Roller Stations: 11-17 Stations Forming Speed:: 15 Meters / Min

Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed ​







INTRODUCTION


The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands and etc.

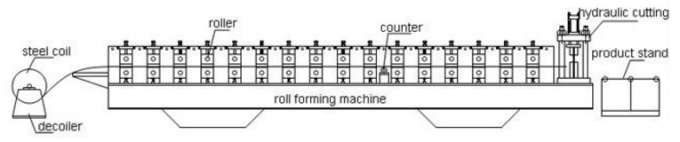

WORKING STEPS


Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed

De-coiler the processing material - Guiding system - Roll forming system - Measure length - Hydraulic cutting - Collecting



Parameters


A. General

 Machine's parts  High strength H350/H400 steel
 Material Thickness  0.2-0.6 mm

 Length of

 the Sheet

 You can set the length according to your need.

 It is controlled by PLC

 which can ensure the accuracy of ±1mm.

 Cutting

 Automatically stop and cutting when it comes to the set

 length.



B. Components Details

 Roller Material  High grade 45# steel. Hard chrome plating, 0.05mm.
 Main Frame  350# steel. More stable and no shaking.
 Middle Plate

 16mm. We use thicker plates to ensure stability

 of our products.

 Forming Steps  11-17, according to the drawing.
 Shaft Material  Φ70 mm, high grade 45# steel.

 Treating process: tempering- finish turning,

 high rigidity, hard to deform.

 Cutting

 Blade Material

 Cr12, hardness HRC60-62.
 Treating process: heat treatment- plane abrasion-  wire electrode cutting.



C. Electric Components

 Suitable Power  380V, 50 Hz, 3 phase or according to your need.
 Screen  7 inch touch screen, easy to operate.
 PLC  Delta DVP14ES

 Well-adapted to various conditions, such as moisture,

 electromagnetic  disturbance.

 Frequency Converter

 Delta VFD-M. It has the advantage of slowing down before cutting,

 to ensure the length  accuracy (±1mm,

 far better than industrial standard ±3mm).

 Length

 Measurement Device

 Omron, made in Japan.
 It features with high accuracy and stability.




One roll forming machine only can produce one profile.
We can manufacture as per customer provided drawings with specification or real objects of sectional materials, custom roll forming machine is welcome. The following is some corrugated panel roofs profiles for your reference.
Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed



More information about steel roof panel profiles, Pls contact with us!
