Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet

China Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier
Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet supplier

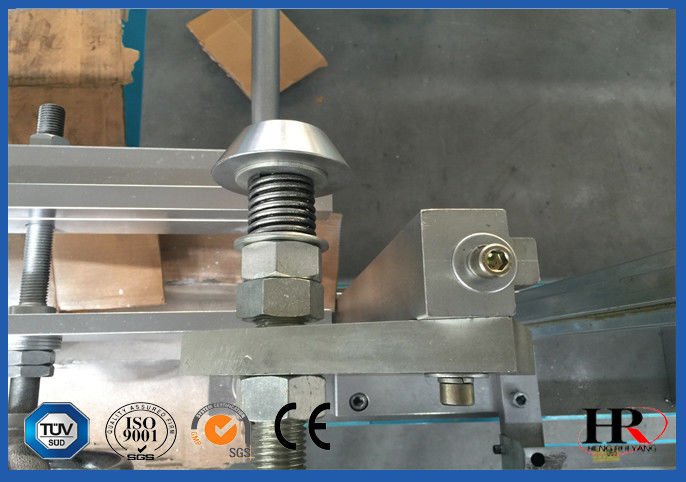

Large Image :  Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SH16-314-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Type: Hydraulic Automatic Color Steel Metal Tile Sheet Roof Steel Glazed Roll Forming Machine Material Of Sheet:: Colored Steel
Forming Roller Stations: 11-18 Stations Forming Speed:: 15 M / Min

Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet





INTRODUCTION


Size(mm)

6800mm*1400mm*1300mm

Total weight(kg)

about 4000kg

Material of roller

45#steel,quenched HRC58-62 with polishing

Main motor power

5.0kw;

Hydraulic power

3.0kw

Oil pressure

10Mpa

Thickness of the panel

0.3-0.8mm

Working speed

(m/min)

10-15m/min



PLC Type

According with yours demand

(English and Chinese exchange)

Steps of the roller

9-15 steps

Material of cutting blade

CR12

Feeding width

1200mm

WORKING STEPS


Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet

De-coiler the processing material - Guiding system - Roll forming system - Measure length - Hydraulic cutting - Collecting









One roll forming machine only can produce one profile.
We can manufacture as per customer provided drawings with specification or real objects of sectional materials, custom roll forming machine is welcome. The following is some corrugated panel roofs profiles for your reference.
Hydraulic Automatic Roll Form Machine For Color Steel Roof Sheet



More information about steel roof panel profiles, Pls contact with us!
