Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel

China Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier
Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel supplier

Large Image :  Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SH16-314-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Type: High Speed Curving Roofing Panel Roll Forming Machine For Glazed Color Steel Material Of Sheet:: Glazed Color Steel
Forming Roller Stations: 11-18 Stations Forming Speed:: 20 M / Min

Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel





INTRODUCTION


This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.

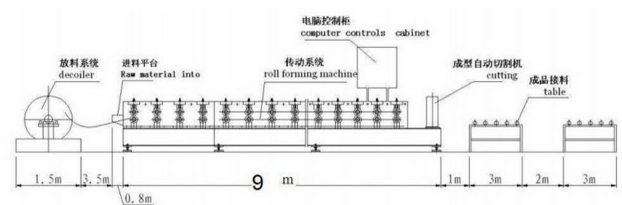

WORKING STEPS


Curving Roof Panel Roll Forming Machine Custom For Glazed Color Steel

De-coiler the processing material - Guiding system - Roll forming system - Measure length - Hydraulic

cutting - Collecting



Parameters



NO

Item

Para

Memo

1



Suitable material

Type

Color steel sheet



Thickness (mm)

0.5-0.6



Yield Strength (Mpa)

230-300



Width (mm)

According to the profile



2

Producing Speed (m/min)

8-10

including cutting time

3

Forming main

motor power(KW)

7

Depend on actual design

4

Hydraulic station power(KW)

9

Depend on actual design

  5

Uncoiler hydraulic

motor power

  3

Depend on actual design

  6

Uncoiler motor power

  2.2

Depend on actual design

7

Total power

21.2

Depend on actual design

8

Power

 AC380V,50Hz,3 Phase

According to customer

9

Dimension (L×W×H, m)

20×3×2

Depend on actual design




Detales



Material: PPGI / GI /Aluzinc
Line Speed Up to 25m/min
Material Coil width Per the design of product
Power 380V 3phase or Per the client's request
Gram Weight: Around 15 tons
Delivery time: 60days
MOQ: 1 Set
Delivery FCL
Warranty 1 year


More information about steel roof panel profiles, Pls contact with us!
