5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile

China 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier
5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier 5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile supplier

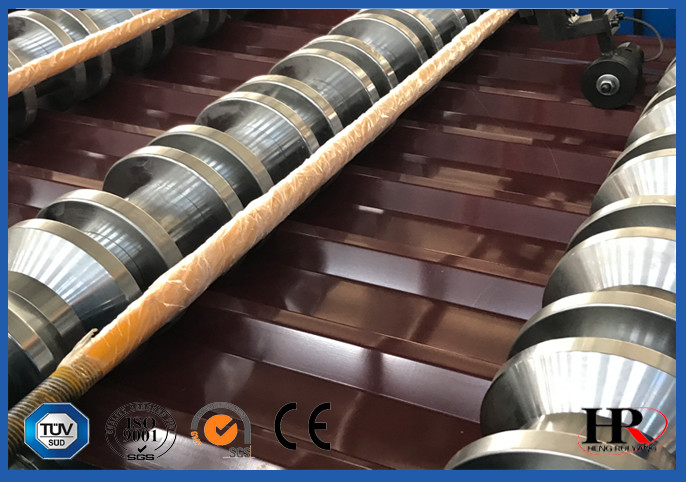

Large Image :  5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SH16-314-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Tile Type: Colored Steel Production Capacity: 5-8m/minute
Power(W): 5.5KW Dimension(L*W*H): 7m*1.5m*0.8m

5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile





INTRODUCTION


Material Width: 1000mm

Material Thickness: 0.4-0.8mm (inspection thickness: 0.4mm=garge 26)

Applicable material: Galvanized Steel (GI), or Prepainted Galvanized Steel (PPGI)



Machine Components:

  • Manual Decoiler: 1 set
    • un-powered, Manually control steel coil inner bore shrinkage and stop
    • max feeding width: 1000mm, coil ID range 470mm+/-30mm
    • max capacity: 5 ton
  • Main machine:
    • with feeding material guide, body frame made from H beam steel by welding rollers nanufactured from 45# steel, precision machined, hard Chrome Coated.
    • Shaft diameter: 75mm, precision machined
    • Main Motor: 5.5kw, frequency speed control
    • forming speed: 5m/min
  • Hydraulic cutting:
    • cutter frame made from high quality 20mm steel plate by welding
    • pump motor: 5.5kw
    • cutting tool material: Cr12, Heat treatment
  • PLC control:
    • control the quantity and cutting length automatically
    • PLC brand: Panasonic or customized
    • control voltage 24V
  • Exit Rack:
    • Un-powered, two units





WORKING STEPS


Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting

Products receiving

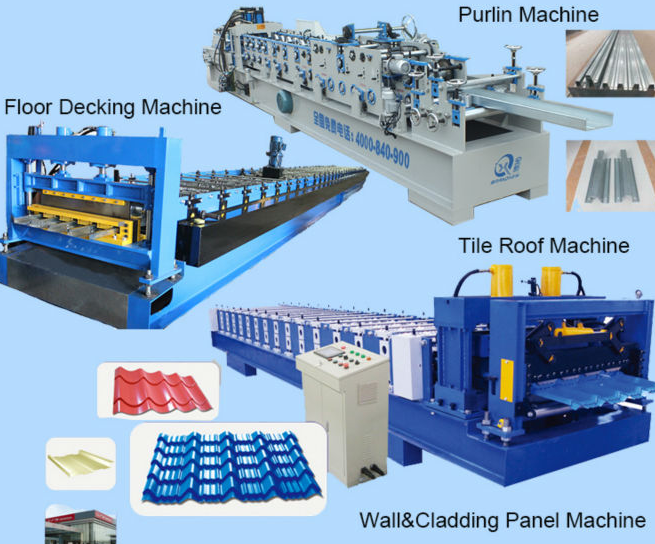

More products for chose

5.5KW Glazed Arch Curving Roof Roll Forming Machine for Colored Steel Tile





More information about steel roof panel profiles, Pls contact with us!
