380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine

China 380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier
380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier 380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier 380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier 380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier 380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier 380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier 380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine supplier

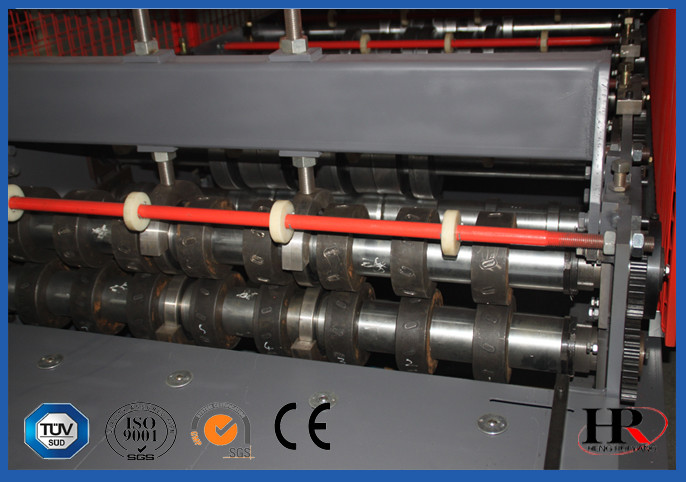

Large Image :  380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SH16-314-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Production Capacity: 8-12m/min Tile Type: Colored Glaze Steel
Voltage: 380v 50Hz, 220V/380v Raw Material Width: 1000/1200mm

380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine

INTRODUCTION


Specification of the Steel Roof Roll Forming Machine (one layer and double layers roll forming machine )



Suitable steel plate




Type

Color steel plate or galvanized steel

Thickness

 0.3-0.8mm

Feeding width

 1250mm 1000mm

Effective width

 840mm 900mm

Production speed

 8-12m/min

Roller stand

 12 rows

Roller Diameter

 80mm

Main power

 4kw

Pump power

 3kw

Side panel of machine

 14mm

Roller material

Carbon 45# steel

Blade material

Cr-12, quenched, Cr-plating size 0.05mm

Control system

 Delta PLC Control

Weight

2800kgs

Size

5500×1400×1500mm


Components of Steel Roof Roll Forming Machine


No.

Item

Usage

1

Uncoiler

It support to material uncoil



Feeding platform

It support to feed material to molding machine

2

Main roll forming machine

It support roll forming the products according your requirement

4

PLC Control System

It control the machine's operation , such as cutting , speed ,ect.

5

Supporter table

It used to receive the finished products



Working steps
380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine


How we build
380V 50Hz Roof Roll Forming Machine , Corrugated Metal Deck Roof Tile Making Machine



More information about steel roof panel profiles, Pls contact with us!
