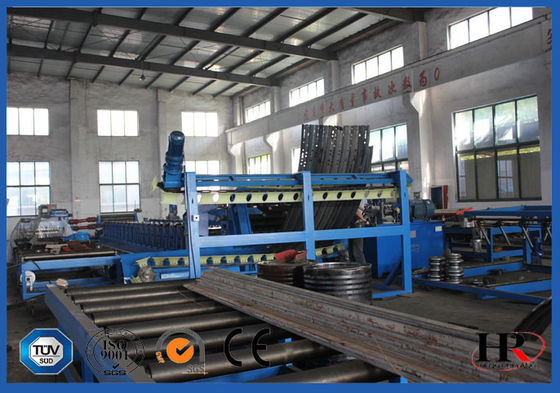

Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine

China Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier
Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine supplier

Large Image :  Automatic High speed Grain Silo Corrugated Sheet Roll Forming Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SH160411-08

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS / MONTH
Contact Now
Detailed Product Description
Type:: Tile Forming Machine Thickness:: 2.5 - 4 Mm
Place Of Origin:: Wuxi, China Voltage:: 380V 50Hz
Certification:: CE SGS ISO

Introduction

Grain silo, sometimes known as grain bin, grain tanks, grain elevator or grain storage bin, is a part of grain elevator structure used for storing grain. The assembled silo sheet is widely used for the purpose of commercial grain storage around the world, and our grain silo corrugated sheet roll forming machine, also called grain bin sidewall rollformer, is especially designed to manufacture such steel sheets.

Machine Components

10 Ton hydraulic decoiler 1 set
Straightening machine 1 set
Main roll forming 1 set
Punching machine 1 set
Curving Machine 1 set
Hydraulic shear 1 set
Hydraulic station 1 set
PLC Control cabinet 1 set
Stacker 1 set




Machine Features

  • This grain silo corrugated sheet roll forming machine is designed to process steel coil into corrugated sheet with designed specification in one step, and this is available for the thicker steel.
  • Our product makes use of roll forming technology to fabricate the corrugations one after another, resulting in released internal stress, reduced spring back effect as well as improved product quality.
  • This grain silo corrugated sheet roll forming machine is most popular one among similar products on the market.
  • Shape forming, punching, curving and shearing operations are finished on the same production line automatically. There would be no straight edges on the sheet, thus the assembly is easy and the productivity is enhanced

Technical Parameter:

  • Suitable material: Galvanized sheet, Zinc Alumina sheet
  • Material yield strength: 310Mpa
  • Material thickness: 2.5-4.0mm
  • Max. Feeding coil width: 1250mm
  • Machine working speed: 4-8m//min
  • Forming station: approx 18 stations
  • Size of roll shaft: Ф120mm
  • Roller material: GCr15, quenching HRC 58-62 °
  • Total power: approx 180KW
  • Power supply: AC440V+/-10%, 50Hz, 3 Phase
  • Whole line dimention: about 35M X 4.5M ( L X W )
  • Installation height: 4.5m
  • Total weith of machine: approx 70 tons

Working Flow:

Loading coil car -> Un-coiler -> guiding device -> feeder -> leveller -> shear roll former -> hydraulic press -> curving -> hydraulic cutting -> stacker -> PLC control



The steel silo corrugagted sheet roll forming machine is widely used to produce Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel, etc.
