Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine

China Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine supplier
Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine supplier Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine supplier Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine supplier Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine supplier Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine supplier

Large Image :  Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151231-74

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Pe film
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Type: Steel Channel Machine Suitable Material: Galvanized Steel Sheet
Punching Type: Optional Coil Strength: 235-345 Mpa
Production Capacity: 10 M / Min Voltage: 380v, 3phase, 50Hz Or At Buyer`s Requirement

Kabelrax channel Sheet Metal Cold Roll Forming Machine



Quick Details

  • Condition: New
  • Type: Kabelrax channel machine
  • Tile Type: Steel
  • Use: Step support, Frame Profile
  • Production Capacity: 10 m / min
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Wuxi Shenghong
  • Power(W): 15 KW
  • Voltage: 380v, 3phase, 50Hz or at buyer`s requirement
  • Dimension(L*W*H): Length: 8000 * Width1000 * Height:1400mm
  • Weight: around 8000 kgs
  • Certification: CE, ISO9001:2008
  • Warranty: 1year
  • Punching type: optional
  • Roller stands: aound 16stands
  • Passive uncoiler: 3T
  • Controller: PLC
  • Roller driven type: Chain transmission
  • Thickness: 1.5-3.0mm
  • Main motor power: 15kw
  • Hydraulic station power: 5.5kw

Components



This line includes 3tons un-power uncoiler, sheet guiding equipment, leveling system, roll forming system, cutting equipment, hydraulic station and electric controlling system



Technical Parameters



Material Spec                       Galvanized steel sheet at stress 350Mpa (50ksi);

Thickness:                            0.7~2.5mm,

Main motor power                15KW

Hydraulic station power        5.5KW

Cutting Tolerance                 ≤±1.0mm (length≤ 3000mm)

                                             ≤±2.0mm ( 3000mm < length ≤ 5000mm)

                                             ≤±3.0mm ( 5000mm < length ≤ 10000mm)

                                             ≤±5.0mm ( 10000mm < length)

Roll Forming Speed            10m/min

Main roller                            round 16 stands

Main body dimension           round 8000*1000*1400mm

Control system                     PLC



Material of Main Equipment



Roller Material                High grade mold steel Cr12 with quenched treatment,which can improve the integrated mechanic feature of the rollers

Active Shaft Material      High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft

Electric Elements           PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements from famous suppliers in China

Cutter blade                  Cr12 mould steel with quenched treatment



Component and Function



Coil Feeding Equipment        Consists of one uncoiler with capacity of 3000kgs and its base. The mandrel can expand or shrink. With separate button to make the mandrel roll.



Guiding Equipment               Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.



 Roll forming system             The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers with quenched treatment after being machined by the exact machining tool.



 Hydraulic Station                  Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.



PLC Control Panel                 Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.



Working Flow



Decoiling the sheet     Sheet guiding   leveling the sheet     Roll forming       Cutting the panel





Introduction of  U Shaped Channel Roll Forming Machine



1. U Shaped channel Steel Roll Forming Machinebiggest and most competitive machinery manufacturer in China, U channel Roll Forming Machine are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factories,warehouses, garages, exhibition centers, cinemas, theatres and gardens. The products of Ushape channel forming machine have excellent anti-bending property and are easy to install.


2.The machine is full-automatically controlled by PLC, the whole hydraulic transmission, drive hydraulic oil jar carry out and shear through center pump station towards the hole, hydraulic pressure Motortransmit power as main transmission. it' s reliable to operate steadily by hydraulic pressure, shear towards hole precision geometry form rule of the notch. Its hydraulic pressure transmission,to set correct and fit.


3.U shaped channel Forming Machine can produce many types of U-shaped channel.The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, punching equipment , pre-cutting equipment,C-shape forming system, hydraulic station, and PLC controlling system



Packaging & Delivery



Packaging Details:

1. Export standard package for container
2. Host nude, wheels with oil and gas bubble cushion  packaging.
3. PLC controller with bubble cushion packaging
4. Spare parts in wooden cases.

Delivery Detail:

about 40 days





 Machinery Shows



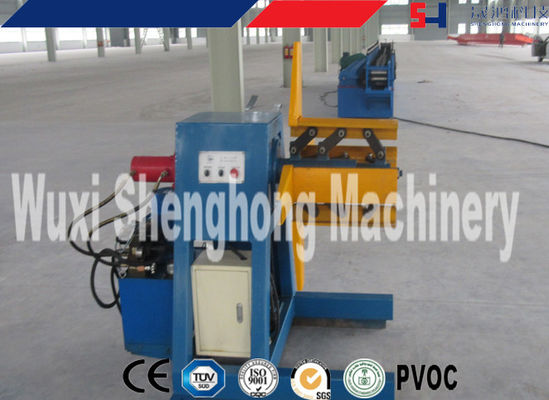

Galvanized Steel Sheet Kabelrax Channel Cold Roll Forming Machine

Contact Details
Wuxi Hengruiyang Technology Co.,Ltd

Contact Person: Mr.wang

Send your inquiry directly to us (0 / 3000)
