Payment & Shipping Terms:
|Type:||Steel Channel Machine||Suitable Material:||Galvanized Steel Sheet|
|Punching Type:||Optional||Coil Strength:||235-345 Mpa|
|Production Capacity:||10 M / Min||Voltage:||380v, 3phase, 50Hz Or At Buyer`s Requirement|

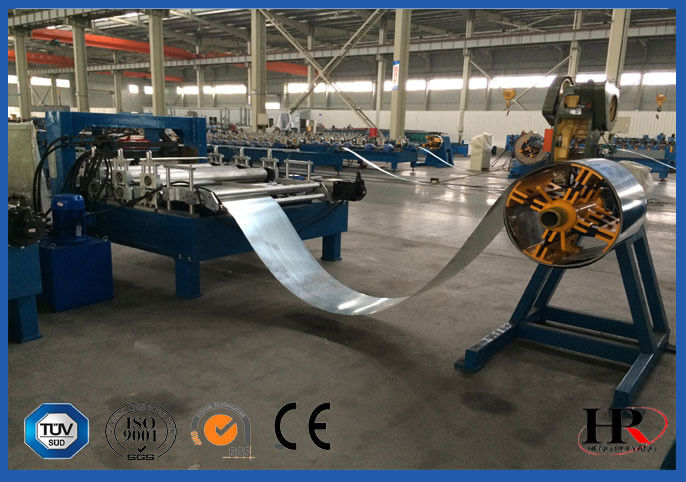

Kabelrax U channel Sheet Metal Roll Forming Machine
This line includes 3tons un-power uncoiler, sheet guiding equipment, leveling system, roll forming system, cutting equipment, hydraulic station and electric controlling system
Material Spec Galvanized steel sheet at stress 350Mpa (50ksi);
Main motor power 15KW
Hydraulic station power 5.5KW
Cutting Tolerance ≤±1.0mm (length≤ 3000mm)
≤±2.0mm ( 3000mm < length ≤ 5000mm)
≤±3.0mm ( 5000mm < length ≤ 10000mm)
≤±5.0mm ( 10000mm < length)
Roll Forming Speed 10m/min
Main roller round 16 stands
Main body dimension round 8000*1000*1400mm
Control system PLC
Material of Main Equipment
Roller Material High grade mold steel Cr12 with quenched treatment,which can improve the integrated mechanic feature of the rollers
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade Cr12 mould steel with quenched treatment
Component and Function
Coil Feeding Equipment Consists of one uncoiler with capacity of 3000kgs and its base. The mandrel can expand or shrink. With separate button to make the mandrel roll.
Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.
Roll forming system The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers with quenched treatment after being machined by the exact machining tool.
Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
PLC Control Panel Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.
Decoiling the sheet Sheet guiding leveling the sheet Roll forming Cutting the panel
Introduction of U Shaped Channel Roll Forming Machine
1. U Shaped channel Steel Roll Forming Machinebiggest and most competitive machinery manufacturer in China, U channel Roll Forming Machine are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factories,warehouses, garages, exhibition centers, cinemas, theatres and gardens. The products of Ushape channel forming machine have excellent anti-bending property and are easy to install.
2.The machine is full-automatically controlled by PLC, the whole hydraulic transmission, drive hydraulic oil jar carry out and shear through center pump station towards the hole, hydraulic pressure Motortransmit power as main transmission. it' s reliable to operate steadily by hydraulic pressure, shear towards hole precision geometry form rule of the notch. Its hydraulic pressure transmission,to set correct and fit.
3.U shaped channel Forming Machine can produce many types of U-shaped channel.The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, punching equipment , pre-cutting equipment,C-shape forming system, hydraulic station, and PLC controlling system
Packaging & Delivery
1. Export standard package for container
about 40 days
