Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller

China Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller supplier
Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller supplier Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller supplier Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller supplier Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller supplier Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller supplier Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller supplier

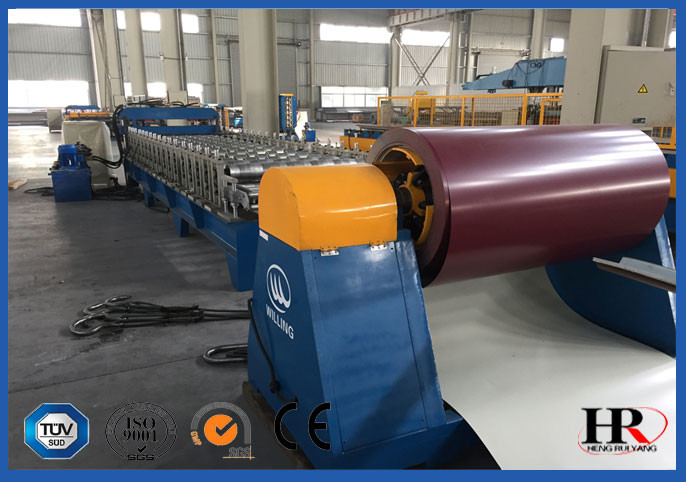

Large Image :  Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SWL151322-102

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Material Type: Friendly Man-machine Interaction Export Markets: Global
Feature: Efficent, Whole Life Technical Support Application: Roof Or Wall
Origin: Wuxi, Jiangsu , China Service: " All-in-house Source' Factory

Roof Tile Roll Forming Machine Anti Rust Roller



Steel Tile Cold Forming Machine

Why this machine?
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.
8. Long life: Ensure you our produce machine`s lifetime more than 15 years.




Technical parameter
Item Specification

Raw Material
Type Pre-painted steel coil & galvanized coils
Thickness(mm) 0.3-0.7
Yield strength(mpa) 235-550
Roller material 45# steel , coated with Chrome
Shaft for rollers

Solid shaft with 72mm,processed with cylindrical

grinder

Forming speed(m/min) About 20-25
Output speed(m/min) About 12 for 6m length sheet
Speed adjusting mode Mitsubishi frequency transformer
Roller drive                                                Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material  Cr12 mould steel
Length measurement Nemicon Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 7.5KW
Total power(kw) 9.9 KW
Process flow Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

Components of machine

Decoiler (manual decoiler and hydraulic

decoiler for option)

1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table (auto. Stacker for option) 1set





Our strength

With SHENGHONG products you save time and money!
SHENGHONG is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
When roll forming machine must be delivered immediately, depending on customer`s features, we can manufacture and deliver machine in only 5-8 weeks.

You can rely on our team!
The dedicated staff at Shenghong is our key to success.
We have engineers with experience more than 15 years in metal forming industry.
Employees and their development are of fundamental importance to Shengghong macchinery.

Quality by Shenghong
Shenghong is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007.
Our Integrated Management System comprises Quality, Environment, Employment and Health Protection. When it comes to safety, there are no compromises.

Roof Roll Forming Construction Machinery.



Machinery Photos



Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller



Workshop Show



Blue Automatic Roof Tile Roll Forming Machine Anti Rust Roller

Get Free:
Provide profile drawing & design technical support FOR FREE!
