|Feature:||Integrate Mechanism , Chemical , Electrical Controlling , Hydraulic Controlling , Pneumatic System||Machine Type:||PU Sandwich Panel Line|
|Appication:||PU EPS Sandwich Panel||Work Process:||Uncoiling, Film Covering, Cutting, Roll Forming, Pre-heating, Foaming, Solidification, Panel Cutting, Stacking And Transferring, Packing|
|Min. Cutting Length:||3 Meters||Max. Stacking Length:||15m|

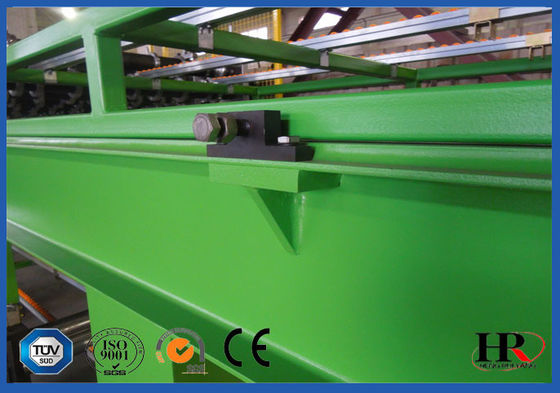

PU Sandwich Panel Production Line Electrical / Continuous
PU sandwich panel line integrate mechanism, chemical, electrical controlling, hydraulic controlling, pneumatic and temperature and the procedure of production includes uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking and transferring, packing. The sandwich panel production line was produced and developed by our company and won a number of technology patents. Wuxi shenghong has successfully filled in the blank of the PU sandwich panel line in China and has awarded as a leading manufacturer in building machinery industry.
The PU sandwich panel made from the sandwich panel roll forming machine is produced with foaming at working site. There is a special device injecting the foaming material between the upper and lower metal sheet. And then the material will be sent to double crawler belt. The chemosynthesis and solidification are both finished inside the double crawler belt. Cutting is in accordance with the length set previously. The sandwich panel roll forming machine has non-stop cutting device and the cutter will be moved along with the panel. The working process of sandwich panel roll forming machine consists of uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking, transferring and packing.
Main Technical Specifications for Sandwich Panel Roll Forming Machine
1. Sandwich Panel Spec.
|Min. cutting length||3 meters|
|Max. Stacking length||15m|
|Panel width||1000mm (according to profile requirement)|
|Thickness of flat panel||40, 50, 60, 70, 80, 90, 100, 150mm|
|Thickness of corrugated sandwich panel||50, 60, 70, 80, 90, 100, 150mm(exclude corrugated sandwich panel)|
2. Steel Sheet Spec.
|Thickness||0.4-0.7mm (material must be level, no corrugation and distortion)|
|Yield strength of material||≤235MPa|
|Max. Width of material||1250 mm|
|Max. coil weight||5 T|
|Inner Dia. of coil||Φ508, Φ610 mm|
|Foaming material||141B foaming agent|
|PU forming density||40～45 kg/m3|
3. Whole Line Spec.
|Working speed||3-7m/min (adjustable)|
|Total length||about 120m|
|Working height||1200mm (height of panel coming out)|
|Pressure for foaming||150-200 bar|
|Effective length of double belt conveyor||21m|
|Control mode||imported PLC system((Siemens/Mitsubishi)|
|Total power||about 300Kw|
|Control voltage||24V / 110V/ 220v|
|Air pressure||0.7Mpa (for buyer to prepare)|
