Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Shenghong |
Certification: | CE ISO |
Model Number: | SH160514-1 |
Minimum Order Quantity: | 1 sets |
Price: | Negotiation |
Packaging Details: | Pe film |
Delivery Time: | 40 days after payment |
Payment Terms: | T/T |
Supply Ability: | 25 SETS/ MONTH |
Max. Plate Width: | 1250mm | Suitable Raw Material: | Stainless Steel, Al, Carbon Steel |
---|---|---|---|
Production Speed: | 0-25m/min | Pressure Adjusting: | By Guiding Screw |
Pattern Form: | Double-layer | Motor Power: | 11Kw |
High Light: | cold forming machine,cold rolling machine |
INTRODUCTION:
high quality embossing machine for steel coil
1)Can be special ordered
2)0-25m/min working speed
3)Adjust speed by inverter
High quality embossing machine for steel coil is mainly for producing embossed antiskid steel plates. The pattern can be specialed required. We can also supply embossing machine for other purpose, such as aluminum embossing, leather embossing, and so on.
Main technical data for high quality embossing machine for steel coil:
Suitable plate | 0.2-0.5*1250mm |
Production speed | 0-25m/min |
Pressure adjusting | By guiding screw |
Pattern form | Double-layer |
Motor power | 11KW |
Power supply | 380V, 3Phase, 50Hz or as required |
Roller size | D400*L1400mm |
Machine dimension |
3300*1200*1500mm |

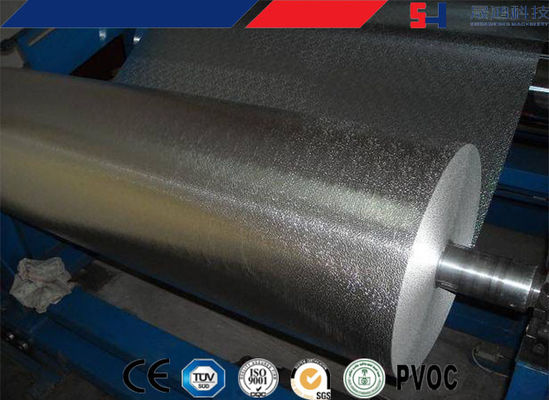

Photos of samples made by high quality embossing machine for steel coil:
We can provide you not only good quality embossing machines for steel coils but also good after-sale service.
