Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed

China Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed supplier
Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed supplier Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed supplier Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed supplier Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed supplier Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed supplier Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed supplier

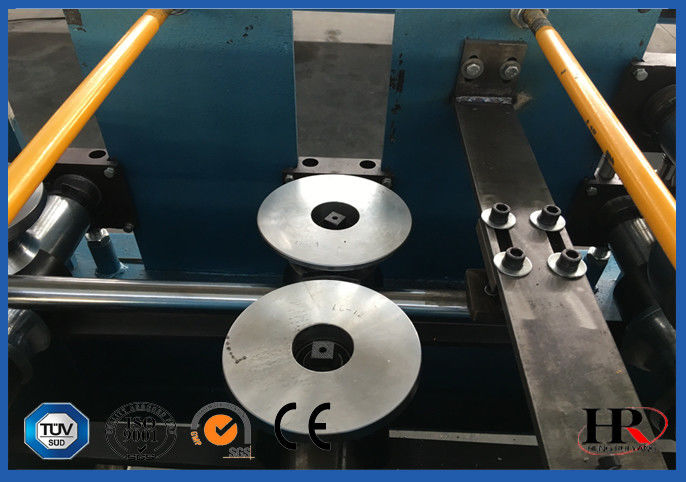

Large Image :  Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH16-06-05-16

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Use: Downpipe Power(W): 5.5KW
Production Line Speed: 8-14m/min Voltage: 380v(or As Your Required)
Certification: CE/ISO Dimension(L*W*H): 9m *1.5m*1.2 M

Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed

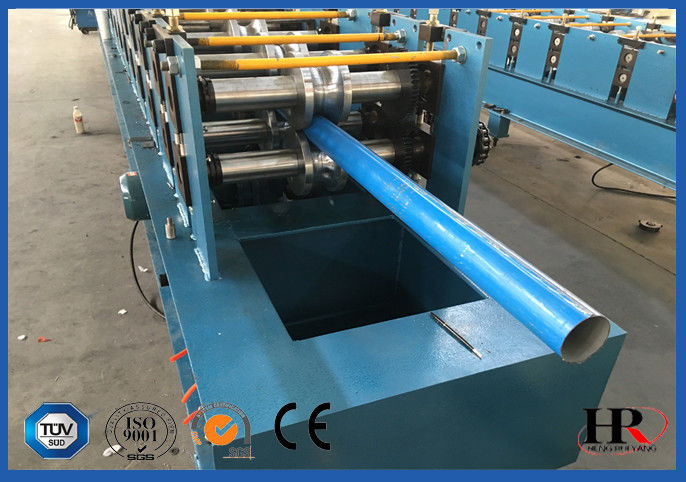

Sample pic:

Automatic Cutting Panasonic Downspout Pipe Roll Former Machine High Speed

Our Advantages:

  Our machine Other company 's machine Influence of the machine
Machine's base High strength H350 / H400 steel. machine through milling macine after welding H270 steel mark, after welding use manual polish keep base in the same horizontal line, ensure product standard
Roller material High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated Normal No. 20 steel with Simple polished and have no coating Roller will have longer use life and ensure the products have same size,no nick on the surface.
Side wall Use high strength16mm thickness steel panel mark Use 12 mm thickness steel panel mark Ensure machine harder to deform, keep the product accurate and stable
Active shaft material High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatmen Normal No. 45 steel with no surface treatment Improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard
Electrical elements PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China All the elements are made in china Machine become more accurate and more stable
Cutter blade Cr12 mould steel with quenched treatment Normal high strength steel without quenched treatment

Stable the integrated mechanic feature of the cutter blade,harder to deform, longer blade's life, ensure product standard





After-sale Serive:

The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
Training time: 5 days.
Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)



Main Components:

1. Decoiler(manual)

2. Feeding Guide

3. Main Roll Forming System

4. Spout Pipe Elbow Machine

5. Hydraulic Station

6. Hydraulic Cutting Service

7. PLC Computer Control PLC





Technical Parameters:



1. Raw Material: color steel or galvanized steel

2. Raw Material Thickness: 0.4-0.8mm

3. Speed: 6-8m/min

4. Control: Siemens PLC computer control

5. Main Power: 4KW

6. Hydraulic Power: 3KW

7. Roller Stands: 20 groups

8. Roller Material: 45#forged steel, with surface polished and coated with 0.05mm thickness hard chrome.

9. Machine Frame Stand: welded structural steel

10. Thickness of Frame Stand: 18mm

11. Shaft Material: high grade 45#steel, heated and quenched

12. Axis Diameter: 75mm

13. Voltage: 380V 3PH 50HZ ( or as your requirement)

14. Elbow Machine Angle:>90°

15. motor power:2.2KW

16. PLC: Japanese Panasonic
