Machine: Roll Forming Machine For Channel / Purlin Working Speed:: Max. 25Meter / Min
Total Power: 80kw Cutting Motor: 2.2 KW ( 3XAC380v, 50HZ)

Sheet Roll forming machine for channel / purlin with punching process

Roll forming machine for channel

This Roll forming machine for channel(purlin) is manufactured based on the world’s top technology and experiences, and Roll forming machine for channel(purlin) has high durability and convenient management. It exquisitely designs diverse wave forms to meet customers’ requirement, and produces continuously and conveniently world’s top purlin products of C. Z., Omega (Rack), Sigma shape as well as guardrails for road.

Roll forming machine for channel(purlin) consists of Un-coiler that inputs and releases coil, Pinch Roll & Leveling System that exquisitely inputs coil, N.C Feeder & Punching Unit that punches and notches the input coil precisely, Roll Forming Unit that makes shape through Multi-stage Forming Roll, and Shearing Unit that cuts fabricated C & Z panel.



Specification



1.Raw Material:Cold Roll Forming Machine


2. Coil Thickness 1.5 ~ 4.0mm (±0.02)
  ASTM A 653M Grade SS 340 Class 1
  Yield strength 345Mpa for HR, CR, Galvanized

3. Coil Width 180 ~ 500mm

4. Producing line speed Max. 25Meter / min
  ( In case of longer than 5 meter length product With confirmed punching pattern by buyer and seller)
  Speed control Frequency control

5. Electric power source 380V x 50Hz x 3Ph (Buyer’s option)
  Control voltage According to customer’s specification
  Total power 80Kw

6. Product
  Width +/- 1mm
  Length Tol. +/- 1mm
  Twist Tol. +/- 2mm at middle for 7meter
  Angle Tol. +/- 1.5 degree at 300mm from end of profile
  Flare Tol. +/- 1.5 degree at 300mm from end of profile
  Minimum length 1500mm ( In case of shorter than 1.5meter, it should be taken out manually in slow speed.)
  Maximum 12,000mm

Un-Coiler

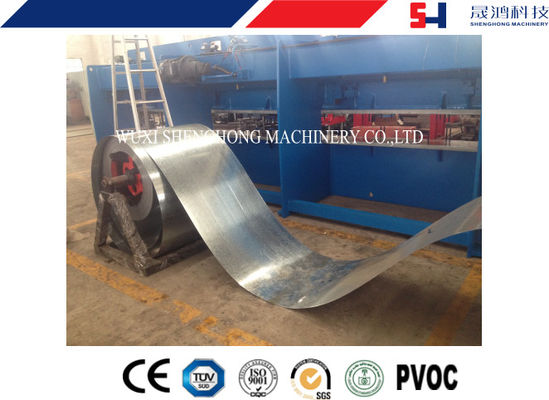

Un-coiler is a device that inputs steel coil to feed it stably to the equipment.
Using Coil Car can makes easy to load and change the Coil and the mandrel shafts expand and contact operates by a hydraulic.



Pinch Roll & Leveling System

The device stably supplies steel coil fed from Un-coiler to Punching System, inputting it to the equipment and leveling precisely.
To control the elasticity and get loosing of coil there is coil opener has installed and as well as the leveling unit to ensure the flatness. And consists the front shearing unit operating by hydraulic to help the replacing the coil and products.

Purlin for Buildings Production Line_1_04Purlin for Buildings Production Line_1_05

N.C.Feeder & Punching Unit

It precisely punches and notches to the input coil, and punches and notches various exquisite and functional structures required by C&Z purlin material.
In order to satisfying with various notching pattern and helping for mass production the automatic control system for precision punching unit has developed.

Purlin for Buildings Production Line_1_072-2-3_07

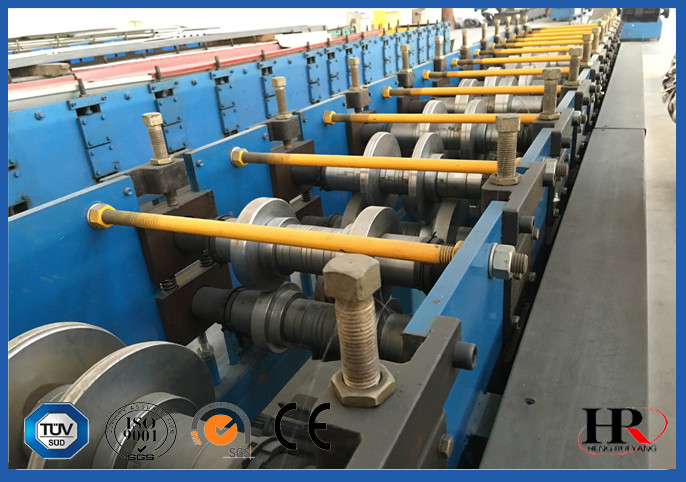

Roll Forming Unit

It provides aesthetic shape through multi-stage forming roll and microwave forming roll, and in case of choosing Cassette Type or Double Layer Type, more diverse shapes like U-bar, Track can be formed at single equipment.
In addition, an automatic width adjusting system has applied for produce a variety of products by changing the width and height.

Purlin for Buildings Production Line_1_082-2-3_09

Shearing Unit

It precisely cuts and discharges products. Various ways can be applied, depending on the required output such as GO&STOP, Shear Manufacturing and Fly-type Shear Manufacturing.

Purlin for Buildings Production Line_1_10Purlin for Buildings Production Line_1_11



Profiles: Roll forming machine for channel(purlin)

IKPUR-RACK

  • Coil width : 600~900mm
  • Product width : 220~300mm
  • Coil thickness : 1.6~2.5mm
Channel(purlin) for building_1

IKPUR-C300

  • Coil width : 250~500mm
  • Product width : 120~300mm
  • Coil thickness : 1.2~3.2mm
Channel(purlin) for building_2

IKPUR-Z300

  • Coil width : 250~500mm
  • Product width : 120~300mm
  • Coil thickness : 1.2~3.2mm
Channel(purlin) for building_3
