Top-tech Roll former for producing steel tile and wall cladding

China Top-tech Roll former for producing steel tile and wall cladding supplier
Top-tech Roll former for producing steel tile and wall cladding supplier Top-tech Roll former for producing steel tile and wall cladding supplier Top-tech Roll former for producing steel tile and wall cladding supplier Top-tech Roll former for producing steel tile and wall cladding supplier Top-tech Roll former for producing steel tile and wall cladding supplier Top-tech Roll former for producing steel tile and wall cladding supplier

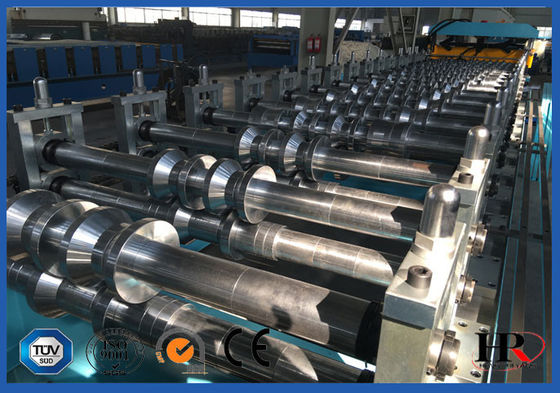

Large Image :  Top-tech Roll former for producing steel tile and wall cladding

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH160711-02

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 25 SETS/ MONTH
Contact Now
Detailed Product Description
Material Type: Top-tech Roll Former Export Markets: Global
Feature: Efficent, Whole Life Technical Support Application: Steel Tile And Wall Cladding
Origin: Wuxi, Jiangsu , China Service: " All-in-house Source' Factory

Top-tech Roll former for producing steel tile and wall cladding



Main components brand



Inverter YASKAWA
PLC Siemens
Encoder Omron
Touch screen MCGS
Other electrical appliances Schneider
Servo motor YASKAWA



Get Free:
Provide profile drawing & design technical support FOR FREE!



Technical parameters



1. Matching material: GI.PPGI aluminum

2. Material thickness range: 0.2-0.6mm 550Mpa, 0.6-0.8mm 300 Mpa

3. Main motor power: 11 KW motor with cyclonical pin wheel reducer

4. Forming speed: 0-30m/min

5. Hydraulic station power: 5.5 KW

6. Quantity of stands: about 24 stands

7. Shaft Material and diameter: ¢80mm, material is 40CR

8. Material Of The Stations: Guide rail style

9. Tolerance: 3m+-0.5mm

10.Way Of Drive: chain

11. Controlling system: PLC

12. Total weight: about 12 Tons

13. Voltage: 380V/ 3phase/ 50 Hz

14. Size of the machine: L*W*H 14 m*2.0m*1.4m

15. Material of forming rollers: 45# steel , coated with chromed treatment

16. Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

17. The rollers surface is mirror polished.

18. Spacer treatment: spacers are plated



Working flow:



Top-tech Roll former for producing steel tile and wall cladding



Machinery Photos



Top-tech Roll former for producing steel tile and wall cladding
