EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ

China EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier
EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ supplier

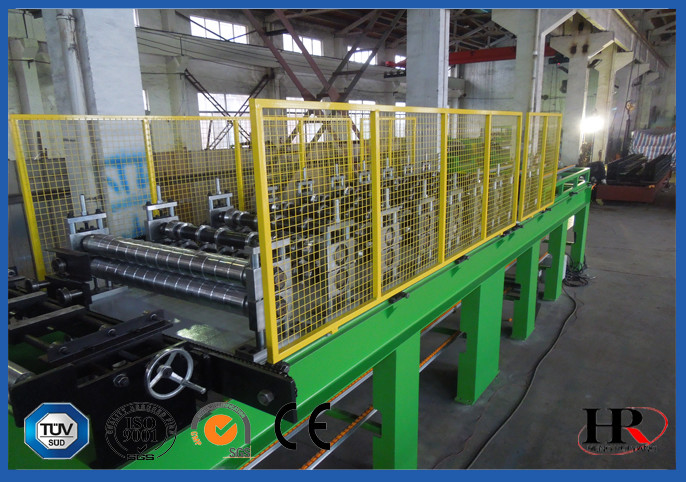

Large Image :  EPS / ROCKWOOL Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH16-8-9-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Production Speed: 4-4.5m/min Cutting Blade Material: Cr 12 High Grade Steel
Voltage: 380V, 50HZ Certification: CE/ISO9001
Backboard Thickness Of Plate: 20mm Chain Size: 20mm

Product Description

Technical specification

1. Technique parameters of the processing line

(1) Coil material: EPS, rock wool, glass silk floss and so on

(2) Thickness of the plate: 0.3-0.8mm

(3) Core thickness: 20-300mm

(4) Production capacity (according to your glue):

4-4.5m/min (the fastest), 2-2.5m/min(the slowest)

(5) Total power: about 30KW

(6) Weight: 25ton

(7) PLC control systerm, easy to operate, high precision and work stably.

(8) Dimensions of whole production line:

About Length35000mm × Width2500mm × Height2600mm



Components of line:

No. Name Unit Qty
1 Composite Decoiler set 1
2 Main Machine For Roll Forming set 1
3 Main Machine For Compositing set 1
4 Control System(PLC) set 1
5 Cutting System set 1
6 Runout Table set 1















Working Flow:

manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table

rolling shutter slats door roll forming machine roller shutter door making machine



Our Services and Terms

Terms of Payment: 40% of the total contract value paid by T/T as down payment, the rest 60% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 60 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 60USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee
