Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine

China Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine supplier
Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine supplier Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine supplier Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine supplier Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine supplier Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine supplier Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine supplier

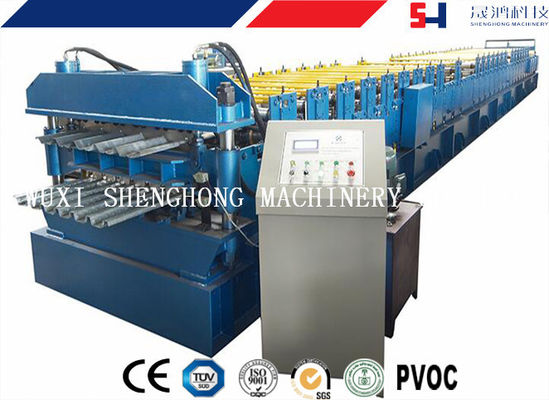

Large Image :  Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH16-8-9-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Production Speed: 8-12m/min Voltage: 380V, 50HZ
Certification: CE/ISO9001 Power: 4+3kw
Dimension(L*W*H): 7.5*1.65*1.6 Raw Material Thickness: 0.3-0.8mm

Product Description

Main parameters



No. Main parameter of roll forming machine
1 Suitable to process Steel,Color steel plate,GI,Aluminium sheet...
2 Width of the plate 1200mm
3 Thickness of the plate 0.3-0.8mm
4 De-coiler Manual one, can load 5 tons raw material
5 Rollers for forming

Up layer: 12 rows

Down layer: 12 rows

6 Diameter of the roller 80mm
7 Rolling material Carbon Steel 45#
8 Main motor power 4kw
9 Productivity 8-12m/min
10 Cutting method Hydraulic mould cutting
11 Material of the cutting blade Cr12
12 Hydraulic cutting power 3kw
13 Processing precision Within 1.00mm
14 Control system Delta PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300 H steel
17 Weight About 6.5T
18 Dimensions 7.5*1.65*1.60m
19 Voltage 380V 50Hz 3phases(changeable as needs)
20 Certificate

CE/ISO







Our Advantage



  Our machine Influence of the machine

Main forming

machine body

High strength H350 or H400 steel.

machine through milling machine after

welding

Sturdy and durable,

ensure the plate standard

Material of the

roller

High grade No.45 forged steel

Ensure the forming effect of

the panel and the use age will

be longer,the surface of the panel

Material of the

cutting

GCr12 steel with quenched treatment

Cutting is out of shape not

easily and use age will be longer,

the panel size precision

Material of the

active shaft

High grade solid No.45 carbon steel,

Shaft diameter is 72mm.

Improve the integrated mechanic

feature of the shaft and keep product

standard

Control system

PLC control system,some elements are

imported from Japan and Germany

Machine become more accurate and

more stable



Working Flow:

manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table

Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine


Roof Double Layers Cold Roll Forming Machine , Color Steel Roll Forming Machine
