Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine

China Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier
Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine supplier

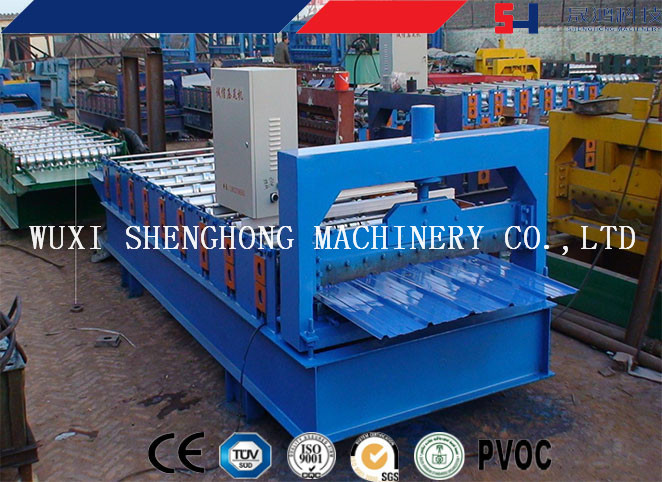

Large Image :  Roofing Sheet Cold Roll Forming Machine Roof Panel Corrugated Sheet Making Machine

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH16-8-9-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Use: Roof Voltage: 380V, 50HZ
Certification: CE/ISO9001 Power: 5.5kw
Dimension(L*W*H): 1.8m*1.5m*1.4m Delivery Time: 45 Days

Product Description

Standard Equipment of Machine:

Uncoiler 1 set
Guiding Equipment 1 set
Roll Forming Equipment 1 set
Post Cut Equipment 1 set
Hydraulic Station 1 pc
PLC Control 1 pc
Supporter Table 2 pc

Our Advantage



  Our machine Influence of the machine

Main forming

machine body

High strength H350 or H400 steel.

machine through milling machine after

welding

Sturdy and durable,

ensure the plate standard

Material of the

roller

High grade No.45 forged steel

Ensure the forming effect of

the panel and the use age will

be longer,the surface of the panel

Material of the

cutting

GCr12 steel with quenched treatment

Cutting is out of shape not

easily and use age will be longer,

the panel size precision

Material of the

active shaft

High grade solid No.45 carbon steel,

Shaft diameter is 72mm.

Improve the integrated mechanic

feature of the shaft and keep product

standard

Control system

PLC control system,some elements are

imported from Japan and Germany

Machine become more accurate and

more stable





The Technical Parameters:

Suitable raw material Color steel sheet; Galvanized steel sheet
Thickness of the material 0.8m to 1.2mm
Yield strength of material 235Mpa
Uncoiler' s loading capacity Max. Capacity: 5000Kgs. (can be increased to be 10 tons)
Forming speed About 15-20m/min
Main motor power 18Kw(Depend on final design)
Hydraulic station power 5.2Kw(Depend on final design)
Controling System Mitsubishi PLC & converter
Votage 380V, 3 phase 60Hz or according to at buyer' s requirment
Quantity of the roller group At lest 15 groups(depend on final design)
Machine dimension About 18m*1.5m*1.4m(depend on final design)
Total weight About 10000kgs(depend on final design)


Working Flow:

manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table
