Place of Origin: | China, Jiangsu |
---|---|
Brand Name: | Shenghong |
Certification: | CE ISO |
Model Number: | SH160814-5 |
Minimum Order Quantity: | 1 sets |
Price: | Negotiation |
Packaging Details: | Container |
Delivery Time: | 40 days after payment |
Payment Terms: | T/T |
Supply Ability: | 30 SETS/ MONTH |
Forming Speed: | 12 M/min | Application: | L Shape Purplin |
---|---|---|---|
Type: | High Configuration | Main Power: | 15 KW |
Controls System: | Mitsubishi Transducers,Schneider Electric, PLC | Width Of Purplins: | 80mm-300mm |
Roller: | Anti-corrosive Treatment | Hydraulic Systems: | 10-12Mpa |
High Light: | z purlin machine,z purlin roll forming machine |

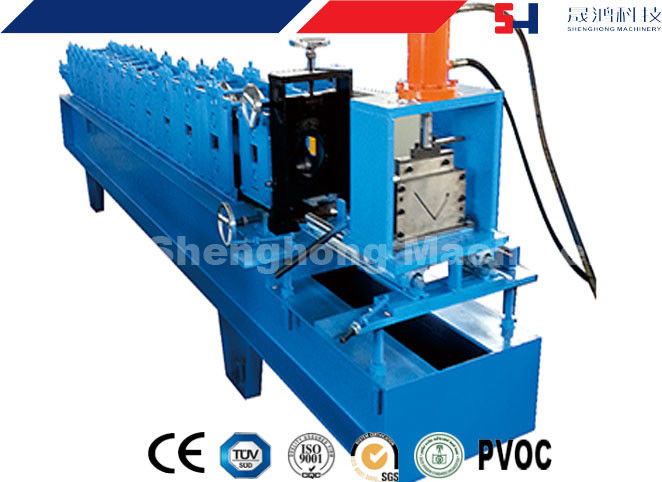

GCr15 Rollers for L Steel Purlin Roll Forming Machine with Quenched Treatment
Main technical specification
Fixing Dimension Total weight Controlling system Main motor power Quantity of Stands Working speed Hydraulic pressure Material of roller die Material of Cutting die Product range |
: 23000mm × 2400mm × 1400mm : about 13,000kg : PLC : 7.5kw; Hydraulic station power: 4kw : About 14 Stands : 8000~10000mm/min : 18~20Mpa : GCr15 bearing steel with quenched treatment. : Cr12 mould steel with quenched treatment. : all the types from 90 to 150 |
Working Flow
Decoiling the Sheet—→Sheet Guiding —→Coil Strip Leveling—→Roll Forming—→Punching for horizontal hole—→Punching for vertical hole —→Measure Length —→ Cutting the Panel—→Panels to the Supporter.
Applicable Area
Door Frame, Rall, Angle, Pallet Rack, Pack Post, Swage Beam Panel,Glass Wool Panel, Hoist Rail, Hand Rail, Car Molding, C-channel,Fire Shatter, M-bar, U-channel
