Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Shenghong |
Certification: | CE ISO SGS |
Model Number: | SH2016-09-11-02 |
Minimum Order Quantity: | 1 sets |
Price: | Negotiation |
Packaging Details: | 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases. |
Delivery Time: | 40 days after payment |
Payment Terms: | T/T |
Supply Ability: | 25 SETS / MONTH |
Machine Model: | C Purlin Roll Forming Machine | Advantages: | Reasonable Straightening Device And Non-stop Shearing Device |
---|---|---|---|
Thickness: | Max 3mm | Raw Material Of Yield Strength: | Q235 |
High Light: | z purlin machine,z purlin roll forming machine |

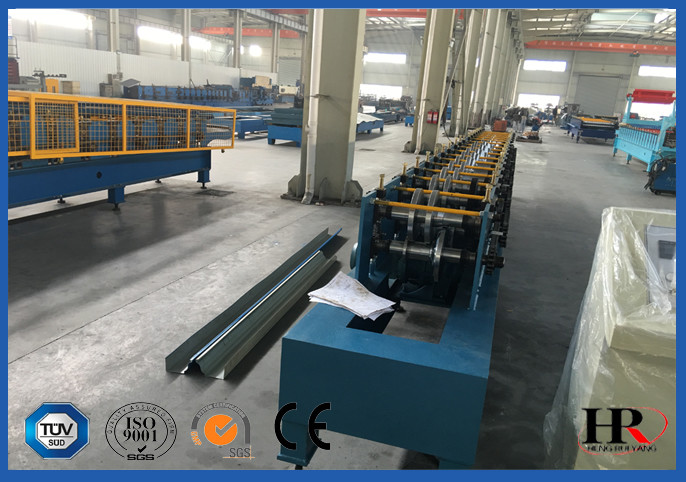

Cold Roll Formed Lip channel in shape of hat section
We are making Cold Roll Formed Lip channel in shape of hat section, U lip and some are special shape in Cold roll forming method all this sections are has many uses specially in overhead conveyor system storage system and much more
We have specialty to make lip channel and double lip channel in exact span for conveyor tracking rail in India most of conveyor manufacture are using over section successfully
Applications of lip channel:
1. Overhead Conveyor track channel
2. Storage system beams
3. For special strength in pre engineering building etc.
Features
1. As a part of C purlin roll forming machine, pressing arm unwinding machine can prevent the loss of the coil.
2. Equipped with a reasonable straightening device, the machine can ensure the finished channels without twisting or sideways bending.
3. The shovel head device of this channel forming machinery will help to send coil sheets into the straightening device.
4. The machine is controlled automatically so that there will not be any safety problem.
5. We have designed a non-stop shearing device for improving the working performance of the machine.
6. We can design punching as per customer's requirement although it is not shown on this layout drawing.
Technical Specifications for C purlin Roll Forming Machine
Raw material | Item | Parameter | Remark |
Material type | hot rolled steel | Special material shall be tested before finalization | |
Thickness | Max. 3 mm | Big range of thickness may cause forming dimension tolerance | |
Yield strength | Q235 | - | |
Production | Profiling section | As per customer's requirement | The basic element for quotation |
Machine material | Roller material | Gr12 | - |
Shaft material | 40Cr | HRC45 | |
Rolling station wall material | QT470 | - | |
Shearing blade material | Cr12 MoV | - | |
Line speed | Roll forming speed | 10 m/min | - |
Forming stations | Quantity of rolling station | 12 stands | Cassette design concept is advised |
Transmission | Gear box | - | - |
Straightening | Roller straightening | 4 rollers | - |
Shearing | fly shearing | - | Precision±2mm/6000mm |
Product supporter | Discharging table | 6meters/9meters/11.8meters | As per customer's requirement |
Hydraulic system | Valve and pump | - | Brand can be optional |
Controller system | PLC | - | Mitsubishi or same level |
Butt welding | Cut and welding platform | Argon welding | customer supply manual welding machine(option) |
Coil car | Coil car | 3t/5t | option |
Machinery Photos
