Steel Sheet Roll Forming Machine For Corrugated Roof / Wall Panel Producing

China Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing supplier
Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing supplier Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing supplier Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing supplier Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing supplier Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing supplier Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing supplier

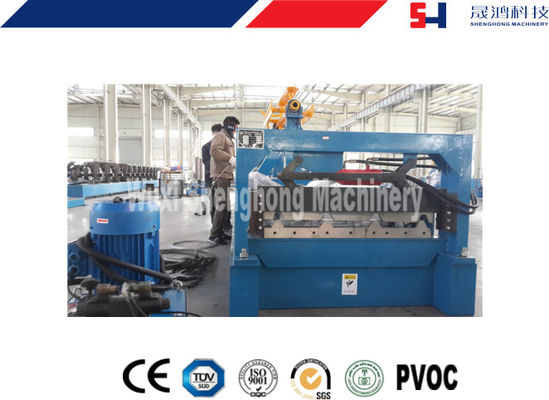

Large Image :  Steel Sheet Roll Forming Machine For Corrugated Roof / Wall Panel Producing

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH160912-03

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Controls: Mitsubishi Transducers, Schneider Electric, PLC Roller: Antirust Treatment
Runout Table: 1 Unit Certificate: CE, ISO9001:2008, GMC, Soncap, AAA Credit
PLC Control Board: 1 Unit Hydraulic Station: 1 Unit

Steel sheet Roll Forming Machine For producing Corrugated Roof / wall Panel



Machine Components of Steel Tile Roll Forming Machine:

  • Decoiler 1 unit
  • Feeding 1 unit
  • Film covering 1 unit
  • Main roll forming machine with cutting 1 unit
  • Hydraulic station: 1 unit
  • PLC control board: 1 unit
  • Runout table: 1 unit

Operation and Maintenance:


1. Sheet metal roll forming machines are totally controlled by PLC. Thus it is very easy to operate. What the user only needs to do is inputting related production data, such as the number of products, length and punching dimension, etc;


2. If users want to adjust the machine or something else, they have to stop the roof panel rolling machine first before carrying out relevant operation;


3. Regular lubrication for chain wheel, bearing and speed reducer of the sheet metal roll forming machine should be conducted carefully. And the forming rollers should be kept clean.



Main Technical Specification of Steel Tile Roll Forming Machine:

  • Material: GI, PPGI
  • Material thickness: 0.3-0.7mm
  • Material width: depend on profile
  • Decoiler: manual passive decoiler ( customer can choose hydraulic decoiler )
  • Weight capacity of decoiler: 5 Ton
  • Forming Station: 13-18stations ( depend on profile )
  • Drive: 1.2' chain transmission
  • Main forming power of steel tile roll forming machine: 5.5KW
  • Hydraulic power: 2.2KW
  • Roller material: 45# forge steel , polished and coated with 0.05mm hard chrome
  • Principal axis diameter: 75mm ( depend on profile )
  • PLC: Panasonic
  • Cutting blade material: Cr12
  • Table: simple non-power table

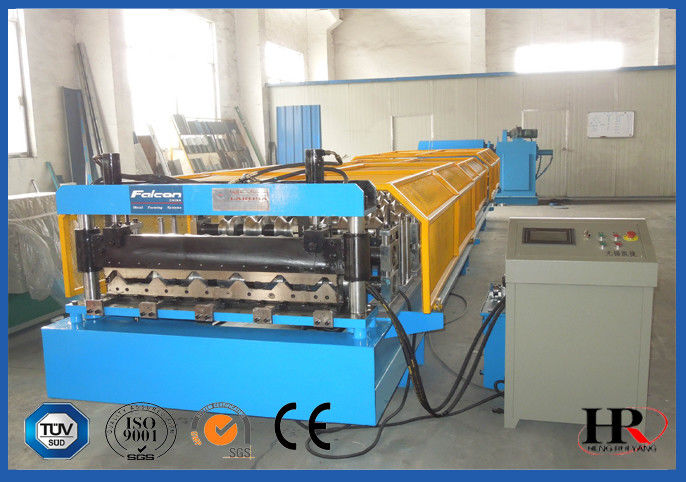

Machine show

Steel Sheet Roll Forming Machine For Corrugated  Roof / Wall Panel Producing
