Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler

China Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler supplier
Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler supplier Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler supplier Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler supplier Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler supplier Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler supplier Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler supplier

Large Image :  Custom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Shenghong
Certification: CE ISO
Model Number: SH160912-06

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Container
Delivery Time: 40 days after payment
Payment Terms: T/T
Supply Ability: 30 SETS/ MONTH
Contact Now
Detailed Product Description
Controls: Mitsubishi Transducers,PLC Roller: Antirust Treatment
Yield Stress: 230-300; 300-350 Certificate: CE, ISO9001:2008, GMC, Soncap, AAA Credit
Material: Color Steel, Galvanized Steel Thickness: 0.3-0.7mm
Tensile Strength: 235Mpa Motor: 7.5KW, 3phase, 60Hz, 380V

Custom Made Professional galavanized steel sheet Roll Forming Machine

Features

This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the
material plate.
The products of it are used as the roof tile and wall panel outside of building, to increase the
beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you
can set several different data on the computer control cabinet according to your own need. After
pressing the button "Confirm", the machine can produce the panel automatically according to the
set data. The molding plate surface smooth and not easy to be marked when it is being stamped.
So it is easy to install.
The product conforms to National Steel Construction Building Standard.

Technical parameter:


Name Item Specification
Coil requested Material Color steel, galvanized steel
Thickness 0.3-0.7mm
Tensile strength 235Mpa
Decoiler(1 unit) Type and weight capacity Manual decoiler, 5T
Inner diameter 498-508mm
Outer diameter Max:1800mm

Rollforming machine
(1 unit)

Rolling speed 15m/min
Motor 7.5KW, 3phase, 60Hz, 380V
Rolling step 17
Driving system Chain transmission
Structure of machine body Entire wall steel structure
Material of roller 45# steel, chromed thickness0.05mm
Diameter of shaft 80mm
Dimession Abt.13m*1.8m*1.6m
Weight Abt.13T

Electric control cabinet
(1 unit)

Main component PLC, frequency convertor, touching screen, encoder
Cutting and length measurement Automatic stop to cut, encoder
Brand From Japan, can be chosen by client
Hydraulic station (1 unit) Power and strength 3.5KW, 16Mpa
Cutting machine(1 unit) Material of blade GCr12 mov steel, heatment and hardness up to HRC58-62
Cutting type Hydraulic cutting

Run out table
(1 unit with 4pics)

Size 1.2m*0.7m*1.2M



Working flow:

Manual decoiler----Feeding&guiding----Rollforming----hydraulic cutting----Run out table


Main components brand


Inverter YASKAWA
PLC Siemens
Encoder Omron
Touch screen MCGS
Other electrical appliances Schneider
Servo motor YASKAWA

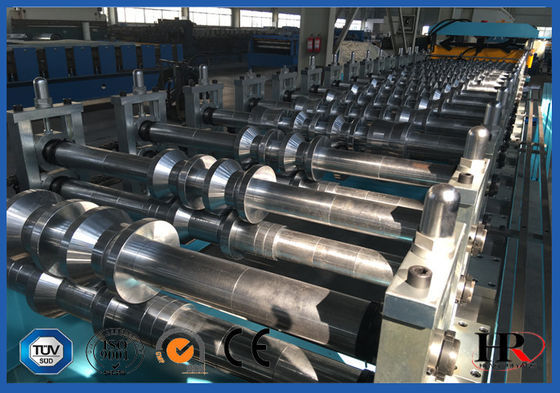

Machine Show


Custom Galvanized Steel Sheet Rolling Forming Machine With Manual DecoilerCustom Galvanized Steel Sheet Rolling Forming Machine With Manual Decoiler
