Place of Origin: | CHINA |
---|---|
Brand Name: | Shenghong |
Certification: | CE,ISO |
Model Number: | SH18-01-03-01 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Export package |
Delivery Time: | Within 45 days after receiving the deposit |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Production Capacity: | About 0-50 M/min | Power: | 7.5 KW |
---|---|---|---|
Warranty: | 1 Year | Voltage: | 380V/50HZ/3phase |
High Light: | cold rolling equipment,cold rolling machine |

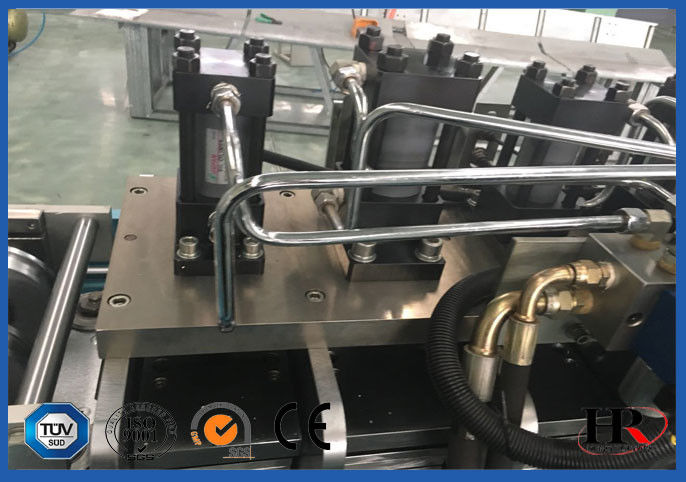

High Quality Steel sheet welding light steel villa roll forming machine 0-50 m/min
Steel forming machine is to produce light steel main equipment, the use of steel or steel cold-formed after forming, rolling production models of a variety of specifications purlins finished.
The wall thickness of the product out of the apparatus can be made very thin, but also greatly simplifies the production process, improve production efficiency. Wall thickness can be produced hot-rolled with the general method but difficult to produce a uniform cross-sectional shape of the complex variety of profiles and cold-formed steel of different materials.
Technical Parameters:
Material of frame | steel sheet welding |
Control | PLC |
Step of forming roller | 12 steps |
Diameter of shaft | 50mm |
Drive type | Gear |
Power of main motor | 7.5 kw |
Voltage | 380V/50Hz/3phase |
Line speed | 0-50 m/min |
PLC | DELTA(TAIWAN) |
Feature of our machine:
1.Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2.Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.
3.We can make and design what kinds of roll forming machine according to the request of customers.
