Punching / Cutting Cold Roll Forming Machine With Surface-treated Roller

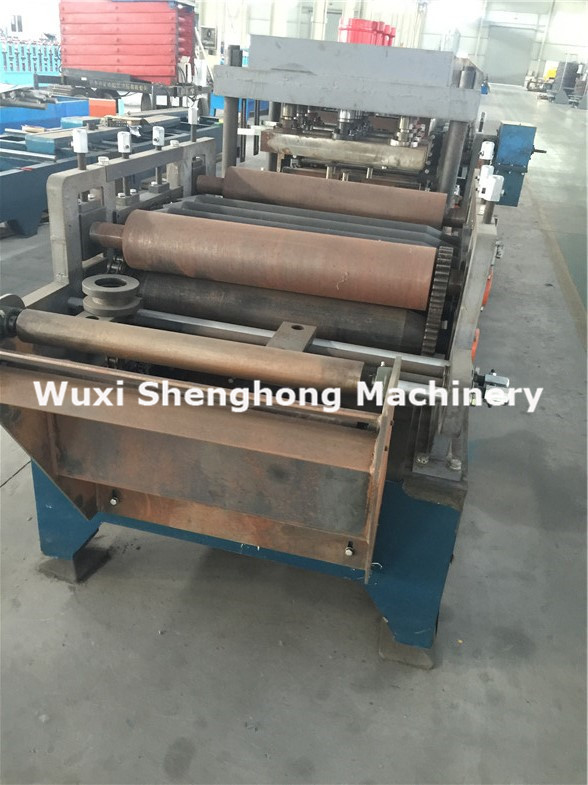

C or Z Shape Purline Forming Machine can produce many size of C & Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C & Z shape forming system, punching equipment, post-cutting equipment,, hydraulic station, and controlling system.
Main technical specification
Main motor power
Quantity of Stands
Material of roller die
Material of Cutting die
: 23000mm × 2400mm × 1400mm
: about 13,000kg
: 15kw; Hydraulic station power: 15kw
: About 16 groups
: GCr15 bearing steel with quenched treatment.
: Cr12 mould steel with quenched treatment.
: all the types from 100 to 250
Suitable material for production
C & Z Purlin mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1.5～3.2mm. it is roll formed by C or Z shape roll forming machine
Decoiling the Sheet—→Sheet Guiding —→Coil Strip Leveling—→Roll Forming—→Punching for horizontal hole—→Punching for vertical hole —→Measure Length —→ Cutting the Panel—→Panels to the Supporter.
Product feature and usage
The products of C or Z shape purline forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
