Stand Column Series Roof Roll Forming Machine , Roof Sheet Making Machine
Tile Roll Forming Machine Technical parameters
Pre-paited steel sheet
2-3 m/min or high speed solution
45#Steel with chrome treatment
Roller driven type
Touch screen and button
Hydraulic system pressure
Hydraulic station motor power
Main motor power
About 8000 Kg
Index error of length
380V 3 phase 60Hz or at buyer's requirement
Components and Functions
Coil Feeding Equipment
Consists of one uncoiler with capacity of 5000kgs and its base. The steel sheet is manually fed to the guiding equipment under the function of friction and traction
Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.
Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

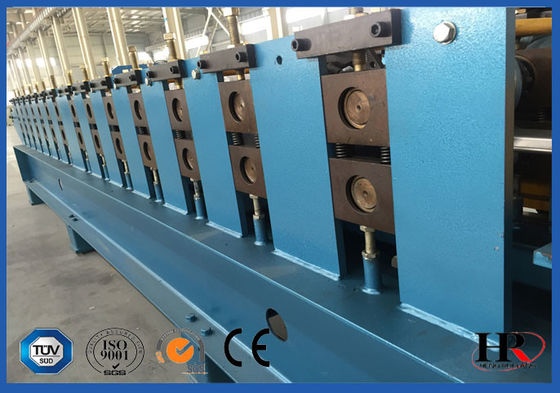

Roll forming system
The main frame of machine is welded separately and the outside wall is connected by
screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool.
After formed the shape of the tile panel, pressing the tile panel with pressing equipment which ensures the shape lasting and more beautiful.
Post Cut Equipment
The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
PLC Control Panel
The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.
Some final products for Automobile.
Some final products for Building, such as for Roofing / Ceiling / Wall materials, and dry wall (track and stud) material.
Some final products for Gate-Panel, Guard-Panel and sound insulation
