Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil

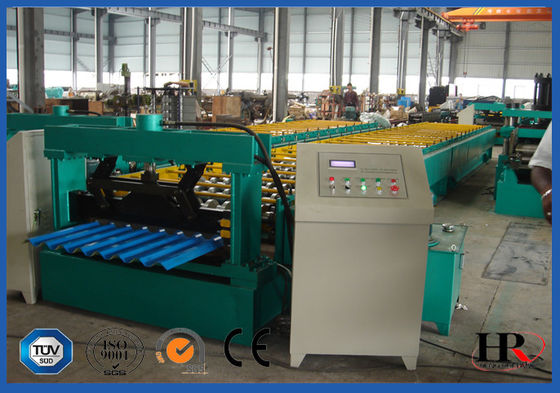

Component of Shaping Machine
colored steel tile forming machine consists of the following : uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table
1. A stylish and attractive design,giving the apperance of a traditional roof tile.
2. Resistant to frost,heat,hail and gales : 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.
Self-locked Roof Series Roofing Tile Forming Machine Features
1. Precise forming.
2. High-solid forming stand guarantees the good and uniform quality of final products
3. The operation automatically minimizes the tolerance of cutting length.
Thickness of Coil Sheet
Hydraulic Station Power
Quantity of Stands:
Type of Cutting
: Colored and galvanized steel sheet at yield stress 33KSI
: 0.5 --0.6 mm
: 2.0 ～ 3.0 m/min. (step distance at 380mm,)
: Main motor power: 7.5kw
: Max. Capacity: 5000kgs
: About 15 groups
: Roll-formed and length-set cutting
: About 18500×1500×1400mm
: About 9500kg
: 380V 3 phase 60Hz or to the buyer's requirement
