PLC control, The designing of metal deck forming machine is aided and
optimized by computer.
Material of cutter:
380V 3 phase 50Hz or as per the customers' requirements
Line size (Lx w x h)
21000 mm×1500 mm×1100 mm
Steel Floor decking Roll forming profiles
Roll Forming Machines for the manufacture of Floor Decking
Our roll forming machine can manufacture roll forming metal floor decking panel profile.
After roll formed by this roll forming machine, the Floor Decking Steel Sheet, Metal deck sheet surface will be very smooth and beautiful without any scratch on surface.
The designing of Steel Deck roll forming machine is aided and optimized by computer.
The metal deck produced by this machine has high strength with big wavelength.
It adheres well to concrete. Used on high buildings, it not only saves steel mold plate, but also reduced the weight of storey.
With the same bearing capacity, it economizes steel and cuts down investment accordingly.
Machine Technology Specification
The metal deck formed by this machine has strong strength with high pitches.
Construction profiles, Building profiles can be be used as the floor of high buildings, Building Construction, and the cost of such floor is low.

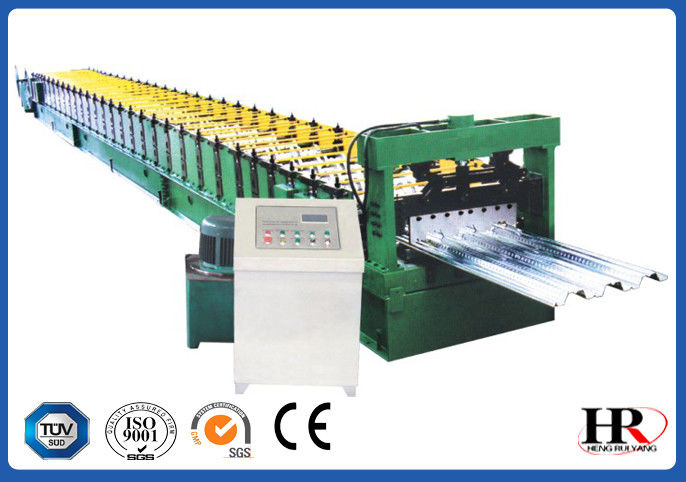

The Steel Floor decking roll forming machine consists of un-coiler, feeding section, roll forming machine with protect guard, Hydraulic pressing and post-cut device, PLC control system, etc.
Structural steel decking saves time in forming up and propping suspended concrete slabs.
Floor Decking Steel Sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness 0.8 - 1.2mm. With its high rib and high strength, used as the floor of high buildings, it can save steel mound and can also save the weight, in the same loading capacity, use this panel, and save the steel quantity, and thus save cost.We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. The following are some floor decking panel profiles as reference.
Further details about our roll forming machines or steel floor decking profile, PLS feel free to contact with us!
